1550nm High Power Erbium-Ytterbium Co-Doped Optical Amplifier (EYDFA) for Fiber Communication

Product Description

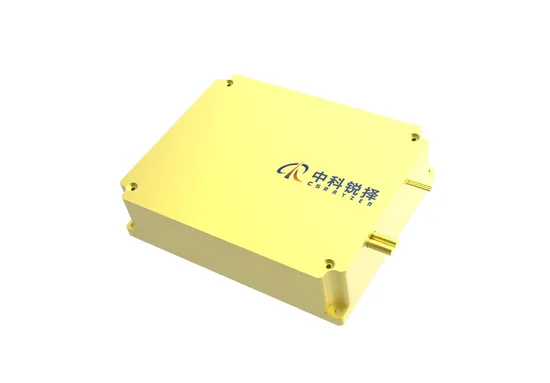

High Power Erbium-ytterbium Co-doped Optical Amplifier
P/N: RZ-M-EYDFA- C-3W-SMF28e-FA-1m
CSRayzer takes pride in providing high performance products including specialized optical passive components and modulators for fiber laser, fiber sensor, and telecommunication applications. Their products are widely used in aerospace and aviation, automotive industries, sub-sea detecting, LIDAR, Oil & Gas and other industries.
1. Working environment indicators

NO.	Parameter	Min	Typical	Max	Unit	Comment
1.	Operating temperature	-5	-	55	.C	Need to add heat dissipation
2.	Storage temperature	-40	-	85	.C	-
3.	Operating relative humidity	5	-	85	%	No condensation
4.	Storage relative humidity	5	-	95	%	-

2. Optical indicators

Parameter	Min	Typ	Max	Unit	Comment
Center wavelength	1540	1550	1565	nm
Input optical power range	-10	0	10	dBm
Output optical power range	17	34.7	37	dBm	@Output up to 5W
Noise figure	-	5	5.5	dB	@Output=34.7dBm
Output fiber type	SMF28E or equivalent fiber, φ3 or φ2 yellow fiber optic cable
Output fiber length	45	50	55	cm
Output fiber optic connector type	FC/APC			-
Working mode	APC(default)/ACC
Return Loss	45	-	-	dB
Output power stability			±0.1	dB
Power reporting accuracy			±0.5	dB
Input and output isolation	-	-		dB
Polarization-dependent gain			0.3	dB
Polarization mode dispersion	-	-	0.5	ps
Input optical power alarm threshold	-13			dBm	When the input optical power is ≤-13dBm, the alarm is issued and the pump laser is turned off
Output optical power alarm threshold	16			dBm	This alarm is generated when the output optical power is less than 16dBm
980 Pump laser alarm threshold (built-in TEC)	20~30			ºC	When the pump laser temperature exceeds the range of 20~30ºC, an alarm is issued and the pump laser is turned off
940 Pump laser alarm threshold (without TEC)	-15~85			ºC	When the pump laser temperature exceeds the range of -15~85ºC, an alarm is issued and the pump laser is turned off
Module temperature alarm threshold	-15~65			ºC	When the pump laser temperature exceeds the range of -15~65ºC, an alarm is issued and the pump laser is turned off
Optical port	-	-	-	-	2(1 input + 1 output)
The APC output power can be ranged	17	-	37	dBm	Set the accuracy to 0.1dB
ACC current control accuracy	-	-	5	%

3. Electrical indicators

NO.	Parameter	Min	Typical	Max	Unit
1	Supply voltage	12	12	14	V
2	Supply current	-	-	6	A
3	Power consumption	-	60	-	W
