New and Used Sinotruk HOWO 6*4 8/9/10cbm 8/9/10/12m3 Concrete Mixer Truck Price for Cement/Transportation

Product Description

Product Description
The Sinotruk Customized Hydraulic Power Steering Mixer Truck is purpose-built to transport concrete for various construction projects. Its distinctive design has earned it nicknames like 'field snail car' and 'olive car.' These robust vehicles feature cylindrically shaped mixers, which ensure efficient transportation of mixed concrete.
The mixing drum continuously rotates during transit, ensuring the concrete remains in a semi-liquid state and ready for immediate use upon arrival. Post-delivery, the drum is typically flushed with water to prevent residual concrete from hardening, thereby maintaining its optimal capacity for future loads.
Product Parameters
Basic Info.

Model NO	ZZ1257N3647N1		Productivity	180m²/h
Feeding Height	1380mm		Vibrating Amplitude	0.9mm
Certification	ISO9001: 2000		Condition	Used
Color	White		Cbm	10/12cbm
Customlize	Support Customlize		Water Tank	450L
Overall Dimension	9000*2550*3950 mm		Transmission	Hw19710, 10f & 2r with Pto
Transport Package	Nude		Specification	8800x2550x3800mm
Trademark	HOWO		Origin	Shandong
Production Capacity	200/months

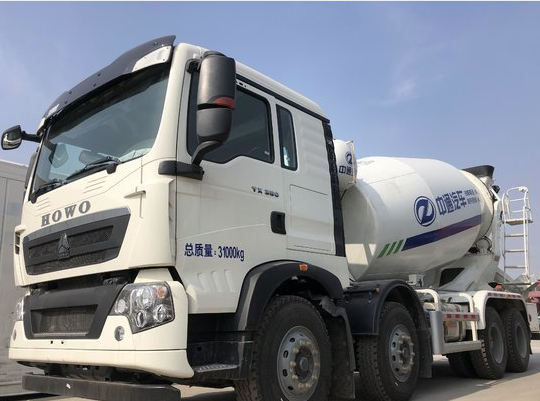

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck

brand	Sinotruk Howo
Cabin	Driving type 6x4, LHD
	HW76 single bed
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10245x2496x3450
	Wheel base (mm)	3600+1350
	Wheel track (front/rear) (mm)	2022/2022
	Approach/Departure angle(°)	16/24
Max. driving speed(km/h)		90
Engine	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Model	WD615.47
	Horse Power(HP)	371
	Emission standard	Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand drive
Tire	12R22.5 tubeless tires with one spare
Mixer Drum	Mixer Capacity	16 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	16MnQ345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand
	Radiator	KAITONG
	Water Tank Volume(L)	400

Detailed Photos
Installation Instructions
Matters needing attention
1. Thoroughly inspect all components of the mechanical system prior to startup. Begin operations only after ensuring everything is in optimal condition.
2. Before starting, confirm that the mixing lever is set to the 'neutral' position.
3. Upon starting, switch the mixing lever to the 'discharge' position to expel any water within the cylinder.
4. During loading, ensure the stirring operating rod is in the 'loading' position.
5. Secure the discharge groove in the 'traveling' position before transportation to avoid any swinging.
6. When maneuvering the joystick, pause briefly in the 'neutral' position before moving to the next position.
7. Follow civilized construction practices: avoid indiscriminately discarding excess materials. Clean the mixing drum, tank, roller, and other components after discharge. When removing concrete clumps from the cylinder, ensure the vehicle is off, the key is removed, and someone is monitoring externally. Company Profile
