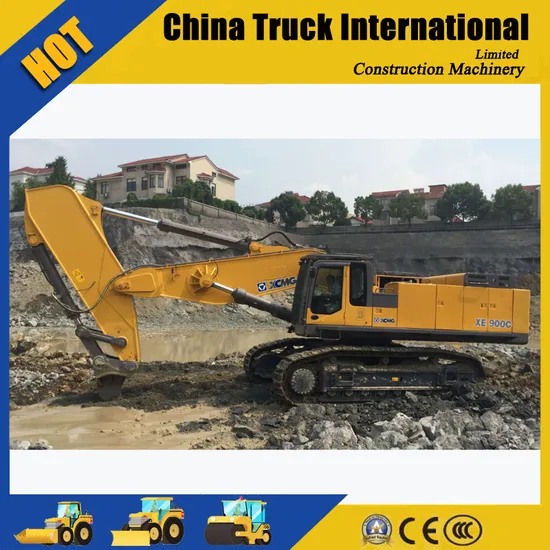

Model Unit XE900C
| Operating weight | kg | 88800 |
| Standard bucket capacity | m³ | 4.0~5.0 |
| Engine | Engine Model | / | QSX15 |
| Direct injection | / | √ |
| Four strokes | / | √ |
| Water cooling | / | √ |
| Turbo charged | / | √ |
| Air to air intercooler | / | √ |
| No. of cylinders | / | 6 |
| Rated power/speed | kw/rpm | 395/1800 |
| Max. torque/speed | N.m | 2365/1400 |
| Displacement | L | 15 |
| The main performance | Travel speed | km/h | 3.9/2.7 |
| Swing speed | r/min | 7.3 |
| Max. gradeability | / | ≥30 |
| Ground pressure | kPa | 115 |
| Max.Bucket digging force | kN | 479 |
| Max.arm crowd force | kN | 368 |
| Max.traction force | kN | 629 |
| Hydraulic system | Main pump | / | 2 |
| Rate flow of main pump | L/min | 2×521 |
| Max pressure of prime relief valve | MPa | 31.4/34.3 |
| Max pressure of travel system | MPa | 34.3 |
| Max pressure of swing system | MPa | 30 |
| Max pressure of pilot system | MPa | 3.9 |
| Oil capacity | Fuel tank capacity | L | 1225 |
| Hydraulic tank capacity | L | 755 |
| Engine lubrication | L | 48 |
| Overall dimensions | A Overall length | | 13570MM |
| B Overall width | | 4550MM |
| C Overall height | | 5090MM |
| D Overall width of upperstructure | | 3350MM |
| E Track length | | 5840MM |
| F Overall width of undercarriage | | 4550MM |
| G Crawer width | | 750MM |
| H Track length on ground | | 4545MM |
| I Crawer gauge | | 2960/3500MM |
| J Clearance under counter weight | | 1680MM |
| K Ground clearance | | 880MM |
| L Min.tail swing radius | | 4700MM |
| Working range | A Max. digging height | | 12060MM |
| B Max. dumping height | | 8070MM |
| C Max. digging depth | | 7250MM |
| D 8inch horizonal digging depth | | 7100MM |
| E Max. vertical wall digging depth | | 4200MM |
| F Max. digging reach | | 12330MM |
| G Min. swing radius | | 5200MM |
| Angle of arm deflection | Degree |
|
