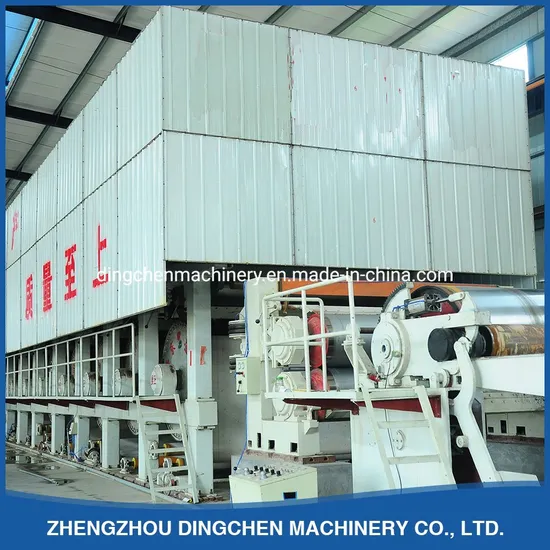

2400mm 50 Tons Per Day Kraft Paper Packaging Paper Making Machine Manufacturers

Product Description

Paper making machine Technical requirementPaper and pulp ratioPaper type: fluting and test liner paperPaper weight: 85-100g / m2Proportion of pulp: determined and adjusted by the user according to the productPaper machine specificationsOutput: 120t / 24hDesign width:Wire width (nominal): 2950mmPaper roll width: 2560mmFinished paper width: 2500mmGauge: 3600mm (subject to final design)Various speed:Designed speed: 400 m / minBalance speed: 450 m / minTransmission speed: 400 m / minRolling roller balancing speed: 1200m / minWorking speed: 300-400 m / minDryness:Out of wire section: 20-22% (± 1%)After press section: 44-46% (± 1%)Before sizing: 92%Paper roll machine: 92%Arrangement of the paper machine: Stand at the roll machine and look at the wire section, the drive is on the left (right) hand side.Paper machine layout form: Single layer layoutPaper Making Machine Raw materialUse Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
Packaging & Shipping
Our Services

FAQ
Other machine 1.Toilet paper machine2.Cultural paper machine3.Kraft paper machine
4.Paper core tube machine
5.Toilet paper converting/rewinding machine

---
