100L Split Pressurized Solar Water Heater with Evacuated Vacuum Tube Solar Collector

Product Description

Product Description Split pressurized solar water heater is working by cooperation of main three parts hot water tank, solar collector and workstation. Solar collector generates the heat energy by absorbing solar insolation. It is the core part of the system. The hot water tank plays the heat storage function. The workstation is the brain of the system. It helps to control the system working : heat exchange circulation, anti-freeze circulation, protection system circulation, display the data of system and so on.
There are three working systems which are divided by tank design :
First type: Storage tank without coil inside. The tank and solar collector exchange the heat by water, the system need circulation pump for running. And controller will plays the control brain for working.
Second type: storage tank designed with one copper coil, this coil is for solar circulation .solar collector conducts the heat by circulation pump to exchange the heat through storage tank coil. Usually circulation pipeline usually filling with anti-freeze fluid (glycol for example) as heat exchange media.
Third type: tank designed with two copper coils: one coil for solar circulation between solar collector and tank, the other one for heating equipment or space heating devices (such as connect to gas/electric boiler , and for floor heating system).
To choose the right type system and parts:
We will suggest you to tell me the installation location, any existing heating equipment. And then I will make a design for you.
Besides the 500L system,we also offer range 100L to 1000L resident system. And commercial more than 1000L system is also available .
Components:
1. Storage tank ,special struction . Inner tank is enameled . Send tank warps the inner tank as heat exchanger. It looks like a jacket to keep the inner tank warm. 1pcs
2.heat pipe vacuum tube solar collector 30tubes ,2pcs
3.Bracket for hold tank and vacuum tube solar collector ,1pcs
4. Optional ,fittings for plumbing use. Flexible pipe and fittings for connect pipe to tank and collector, 1 lot

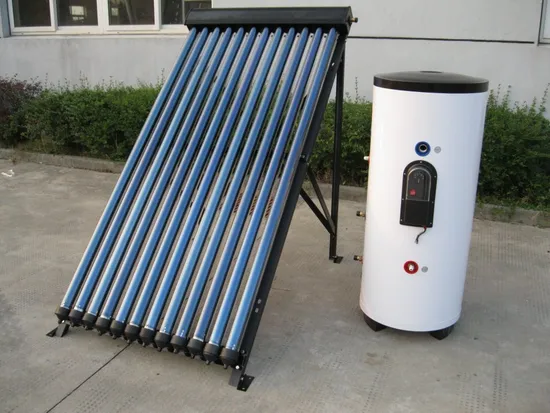

Detailed PhotosProducts photos for display
Product ParametersSpecification:

SPECIFICATION
Inner Storage Tank		Food-grade stainless steel SUS304-2B 1.2mm-2.0mm
Heat Exchanger		Dual copper coil, Φ12*1.0mm thickness
Tank Exterior Shell		High-quality white coated color steel 0.5 mm
Tank Insulation		High-density polyurethane integrated foam-forming with lasting heat preservation
Vacuum tube		Three-target vacuum tube, anti-freezing heat pipe, Aluminium fin and heat-resisting silicon seal
Manifold		Red copper header Φ35X1.0mm, Aluminium alloy shell 2mm, high density rockwool&PU foam insulation
solar pump station&expansion vessel		SP106 pump station, high pressure expansion vessel
collector bracket		Original color / black aluminium alloy 1.8mm, universal bracket suitable for slope/ flat roof or wall installation
Assitant Accessories of tank		Electrical heater, Anode magnesium, T/P valve
Rated working pressure		6.0 Bar
Anti-freezing of heat pipe		> - 40°C
Item No.	Water Tank	Heat Exchanger	Heat Pipe Solar Collectors		Pump Station	Package	Container Loading / Sets
	Capacity	in Water Tank	Item No.	Collector Qty	Item No.	Volume(cbm)	20GP	40GP	40HQ
VOD-SPH2-100	100L	2 Pcs	VODHC-5812	1 Pc	SP106-5	0.63	46	95	113
VOD-SPH2-150	150L	2 Pcs	VODHC-5815	1 Pc	SP106-8	0.79	37	76	90
VOD-SPH2-200	200L	2 Pcs	VODHC-5820	1 Pc	SP106-12	0.94	31	64	76
VOD-SPH2-250	250L	2 Pcs	VODHC-5825	1 Pc	SP106-12	1.11	26	54	64
VOD-SPH2-300	300L	2 Pcs	VODHC-5830	1 Pc	SP106-12	1.32	22	45	54
VOD-SPH2-400	400L	2 Pcs	VODHC-5820	2 Pcs	SP106-12	1.67	17	36	43
VOD-SPH2-500	500L	2 Pcs	VODHC-5825	2 Pcs	SP106-18	1.95	15	31	36

Packaging & Shipping
Tank ,frame,flat plate collector with cartons.
Company ProfileHaining Vod Solar Energy Industry CO.Ltd. is one of solar water heater manufacture focus on solar products and solar solutions for more than 20years. As solar water heater manufacture, we do mainly produce a large different ranges of solar water heater: open loop solar water heater, close loop solar water heater, solar thermal collector ,heat pipe solar collector and customized solar water heater. As a developing and energy saving factory, we supply different energy saving products: air source heat pump, solar pump, solar light, solar pv on-grid and off grid system, solar refrigerator, solar AC and so on.
In order to produce a high-quality solar water heater, we do investigate on large amount on producing machine and skill workers. We adopts 8 location automatic punching machine, arc-argon welding machine, automatically lines for solar manifold ,up and down foaming platform for foaming and other lead technical machines. About 85% workers have more than 10years working experience in solar water heater manufacturing. The professional engineer team is built especially for large scale solar water heating system design and installations. The team offers different solar solutions according to customer's different project request or single products request.
As a responsible solar water heater manufacture, we have a strict quality control in materials and production, we pay the double attention on producing. Even a screw, we test and choose the best for our solar water heater. We are do improvement details according the customer feedback and producing process. To offer a quality solar water heater, 100% solar water heater tank are tested and a sample set are installed to check if all is fine before delivery. All solar water heater we produced; the lifetime is more than 10years.Free exchange on damage goods fall in our warranty period.

---
