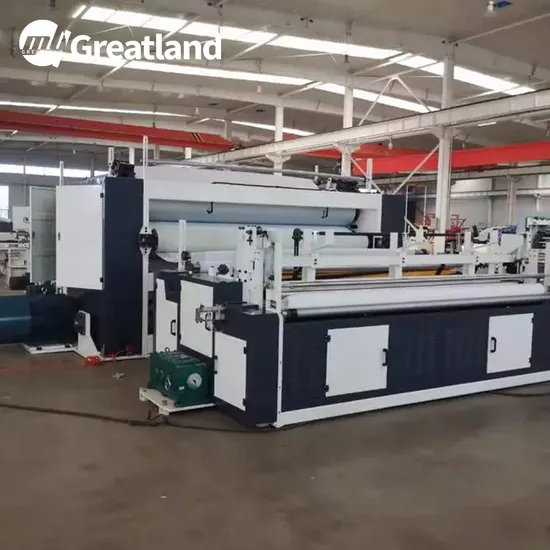

Glue Lamination Kitchen Paper Towel Product Roll Printing Perforating Processing Rewinder Machine

Product Description

Automatic Kitchen Towels Rewinder adopt newly designed glue applicator unit. It makes the gluing more equality. It
has been integrated with the international advanced PL C technology, variable speed adjustment, electronic braking, and touch button more menu type LCD screen operation control panel. And we independently developed long distance communication service system. It can detect the ma- chine running at any time and improve the production efficiency. It is ideal and important converting machinery for making the kitchen towels.

Machine Model	1880	3150	3650
(mm)Raw Material Width	2100	3000	3500
Finished Roll Diameter	60~150mm(Tightness adjustable)
Finished Roll Core Diameter	30-50mm
Raw Material Diameter	1500mm(Other sizes are available)
Raw Material Core Diameter	76.2mm(Other sizes are available)
Perforation Pitch(to be appoint)	4 perforating blade 90-160mm
Speed	180-200m/min
Programmable controller	Programmable Controller(PLC)
Gluing System	Embossing glueapplying System,drove by asynchronous servo(to be order)
Unwinding Unit	1-3ply
Pneumatic System	3 HP air compressor,Mini pressure 5kgcm'Pa(Provided by client)
Power	Frequency conversion speed regulator,11-24 kw
Dimension(L×W×H)	8200x3200x2100-8200x4500x2100
Weight	depend on the size and configure
Embossing Unit	double ply embossing,steel to steel,steel to rubber embossing
driving system	servo separately drivingwinding Unit Driving
Unwinding Unit Driving	motor driving
Printing Unit	color printing unit
Perforating Unit	Pneumatic control
Modem	Option

Working Principle:
Automatic pneumatic loading jumbo roll - synchronous conveying - embossing-punching - automatic winding - cutting - packing - sealing.
1.Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2.Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
3.Packaging---Packaging can be packaged in a packaging machine or manually wrapped,and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Weifang Greatland Machinery CO., LTD. Weifang Greatland Machinery Co., Ltd. belongs to Greatland Group, which is specialized in paper onverting equipment from 2001.In 2015, we built up our new workshop occupied more than 30000 square meters. Greatland always devotes to research and innovation of our products. Apart from normal model, all roducts can be specially customized for our partners. Our products mainly include: Fully automatic high speed toilet paper production line, Fully automatic facial tissue paper production line, Fully automatic hand towel production line, Fully automatic napkin paper production line, Fully automatic pocket tissue production line, Fully automatic neck paper production line, Slitting rewinder series, etc. Annually our products are exported to all over the world with turnover USD 10million. We sincerely hope to establish more cooperation based on our trustworthy quality and in-heart service. Paying continuous attention on the development of paper converting products, GREATLANDers not only devote to creating more and more mutual benefits, but also do the best to improve spiritual pursuit for all of our partners. Sincerely hope we are getting better and better through our joint efforts.
Greatland has professional technical team for installation, commissioning, and related services, also has a very hole some file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.Within the quality guarantee, Greatland settle the problems on site.
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.

---
