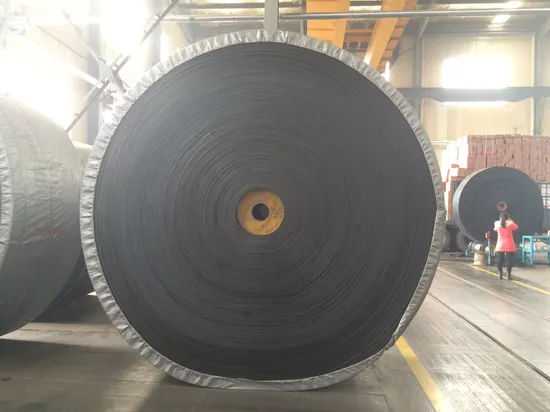

Hy Rubber China Ep Conveyor Belt

Product Description

Features of Polyester ( EP) conveyor belt:
Belt body high modulus, use small, heat resistance elongation, good resistance to mpact, Apply to high, high speed.
Advantages of EP conveyor belt:
1. EP/NN multi-ply is one of the best quality synthetic fibers that the rubber industry uses nowadays. The EP multi-ply belt is woven by polyester in warp and polyamide in weft, it is most widely used fabric in rubber industry, and its outstanding merits are high abrasion resistance, high tensile strength;
2. EP/NN Conveyor belts has the characteristics of the low elongation in warp and good trough ability in weft, good water resistance, wet strength is not reduced, not mildew, initial modulus polyester high, desirable safety coefficient is low.
3. EP/NN Conveyor belts are suitable for long-distance and high speed under the condition of high load conveying material, which is widely used in mining, metallurgical industry and architectural industry and ports.
Type:
EP100, EP150, EP200, EP250, EP300, EP350, EP400

Item	Structure		Textile item	Thickness	Tensile Strength(N/Mm)					Thickness of Cover Rubber(Nm)		width range Mm	Length of belt Mm
	warp	weft			2ply	3ply	4ply	5ply	6ply	Top cover	Bottom cover
EP	polyster	Nylon	EP100	1	200	300	400	500	600	2.0-30	1.5-20	300-2500	≤300
			EP125	1	250	375	500	625	750
			EP150	1.1	300	450	600	750	900
			EP200	1.2	400	600	800	1000	1200
			EP250	1.4	500	750	1000	1250	1500
			EP300	1.6	600	900	1200	1500	1800
			EP350	1.8	700	1050	1400	1750	2100
			EP400	1.9	800	1200	1600	2000	2400
			EP500	2.1	1000	1500	2000	2500	3000
			EP630	2.4	1260	1890	2520	3150	3780

Item	Structure		Textile Item	Thickness	Tensile Strength(N/Mm)					Thickness of Cover Rubber(Nm)		Width Range Mm	Length of belt mm
	warp	weft			2ply	3ply	4ply	5ply	6ply	Top Cover	Bottom Cover
CC	Cotton	Cotton	CC-56	1.1	120	168	224	280	336	2.0-30	1.5-20	300-2500	≤300
TC	Teylene	Cotton	TC-70	1.0	140	210	280	350	420	2.0-30	1.5-20	300-2500	≤300

Fabric type selection:

Type	EP		NN		CC		TC
	Warp	Weft	Warp	Weft	Warp	Weft	Warp	Weft
Tensibility	Ordinary	Good	Excellent	Good	Good	Ordinary	Good	Ordinary
Flexibility	Good	Excellent	Excellent	Excellent	Good	Good	Good	Good

Fabric thickness:

Item	EP100	EP125	EP150	EP200	EP250	EP300	EP350	EP400	EP500	EP630	CC-56
Thickness Per Ply	0.55	0.6	0.7	0.8	1.07	1.2	1.3	1.4	1.55	1.8	1.5
Item	NN100	NN125	NN150	NN200	NN250	NN300	NN350	NN400	NN500	NN630	TC-70
Thickness Per Ply	0.5	0.55	0.65	0.8	0.95	1.2	1.3	1.35	1.5	1.75	1.5

---
