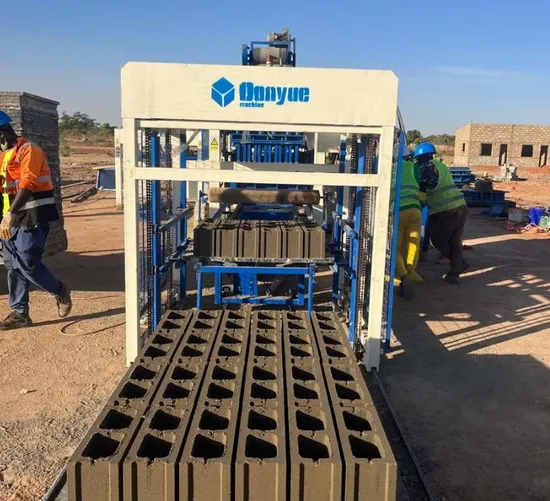

High Quality Qt10-15 Automatic Hydraulic Hollow Brick Making Machine

Product Description

Product Description
Name: QT10-15 Automatic Hydraulic Block Making Machine
1.QT10-15 Brick Production Line is fully automatic brick making machine, which can make different sizes of hollow blocks, solid bricks, paver and curbstone by changing moulds.
2. QT10-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.

AS the molds are changeable, this concrete brick machine is able to produce different types of blocks/bricks, and this is a
hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.

The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with a steady year turnover and with a certain number cash to make the factory running.

host machine size	3800*2300*3550mm
block making period	15s
vibrating force	90-110KN
host machine power	51.2KW
host machine weight	11.5T
Pallet size	1300*900*25/30mm
Brick types can make	all kinds of types, only need to change the molds.

Main Features
This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor 1) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
2)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
Product Parameters
Detailed Photos

1.Hydraulic system Hydraulic power is 37kw, the blocks are of good quality, large density and high strength.
2.Feeding system
Special structure can let material more even, cooperates with vibration rator, can keep blocks have large density and higher strength.

3.Electrical parts
Electrical components are made in famous factories. The operate method is easy, and if you want to operate by hand, every movement one button, which is convenient for you to find the fault of machine.

4.Actuate linkage
The machine uses chain and gear drive which can keep longer life and lower faults. We add some wheels to reduce the moving resistence.

5.Mould
Mould is different according to the customer need, and there will be one free mould with the machine. Mould is easy to be replaced by hand, and products are diverse. The life of mould is very long because of the heat treatment and precise wire cutting technics.
6.Products
Under mould, there is vibration system, and vibration force can reach to 50KN, so all the products can keep large
density and higher strength. This machine can not only produce concrete blocks but also bake-free soil blocks.

Sample
The machine can produce various hollow bricks, solid bricks and pavers by changing the moulds. The following bricks are somecommon brick types. At the same time, we can customize the brick moulds for you according to your specific requirements.
Product Application
1. QT10-15 fully moulds concrete brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. QT10-15 fully moulds concrete brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.

3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
Mixer
Name: JS750 Mixer Dimension: 4195x2300x2800mm Charging capacity: 1200L Discharding capacity: 750L Total weight: 6800kg
Motor
Famous motor, high quality, international warranty service, stable voltage, high efficiency, long lifetime
PLC Control Unit
Make the machine Automatic Running. WIth touch Screen can set Machine parameter easily
Human Design Hydraulic station
Hydraulic station with high cacoity . With water cooling system ,can cool the oil temperature with flowing water ,keep working for a long time
Material for making blocks
automatic hydraulic fly ash brick making machine/paver block making machine price/concrete block making machine manufacturers
This is the most popular proportion in making block making machine: 1. Standard concrete block: Cement 9-12%, sand 40%, stone 45%, water 3% 2. Light concrete block: Cement 9-12%, slag 80-90%, water 3% 3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3% 4. Cement 8%-10%, sand 30%-40%, stone 50%-60% 5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%.
