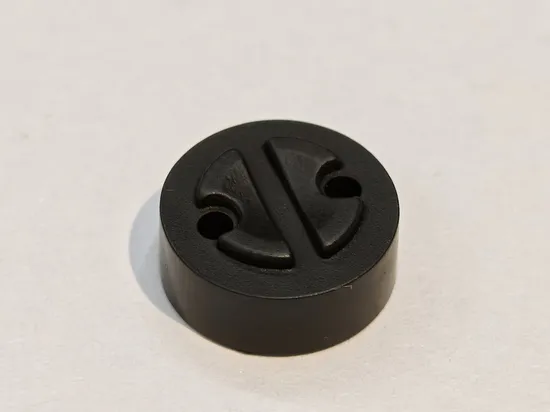

Butyl Rubber Stoppers Rubber Seal for Electrolytic Capacitor

US$0.025-0.08 10,000 Pieces (MOQ)

Basic Info.

Appearance
Granules
Form
The Massive Raw Rubber
Diameter
4mm
Transport Package
Standard Export Carton
Specification
Customized
Trademark
OEM
Origin
China
HS Code
4017002000
Production Capacity
500000

Product Description


Product Code φD H φG P φd1 φd2
4-102 3.35 ±0.05 1.80 ±0.05 0.90 ±0.05 1.60 ±0.1 3.0 -
4-109 3.35 ±0.05 1.90 ±0.05 0.90 ±0.05 1.60 ±0.1 3.0 -
4-101 3.35 ±0.05 2.20 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-104 3.56 ±0.05 2.45 ±0.1 0.90 ±0.05 1.60 ±0.1 3.15 -
4-105 3.35 ±0.05 2.50 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-108 3.35 ±0.05 2.50 ±0.1 0.95 ±0.05 1.60 ±0.1 3.0 -
4-111 3.35 ±0.05 2.55 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-112 3.40 ±0.05 2.50 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
5-105 4.35 ±0.05 1.80 ±0.05 0.90 ±0.05 2.10 ±0.1 4.0 -
5-125 4.35 ±0.05 1.90 ±0.05 0.90 ±0.05 2.10 ±0.1 4.0 -
5-120 4.35 ±0.05 2.50 ±0.1 0.90 ±0.05 2.05 ±0.1 4.0 -
5-101 4.35 ±0.05 2.60 ±0.1 0.90 ±0.05 2.05 ±0.1 4.0 -
5-102 4.35 ±0.05 2.60 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
5-122 4.35 ±0.05 3.00 ±0.1 1.10 ±0.05 2.10 ±0.1 4.0 -
5-116 4.40 ±0.05 3.00 ±0.1 1.10 ±0.05 2.10 ±0.1 4.0 -
5-104 4.35 ±0.05 3.30 ±0.1 1.10 ±0.05 2.00 ±0.1 4.0 -
5-111 4.35 ±0.05 3.50 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
5-121 4.40 ±0.05 3.50 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
6-110 5.30 ±0.05 1.90 ±0.05 0.90 ±0.05 2.60 ±0.1 4.9 2.6
6-112 5.30 ±0.05 2.50 ±0.1 0.90 ±0.05 2.60 ±0.1 4.9 2.6
6-111 5.30 ±0.05 2.50 ±0.1 1.10 ±0.05 2.60 ±0.1 4.9 2.6
6-101 5.30 ±0.05 3.00 ±0.1 1.10 ±0.05 2.60 ±0.1 4.9 2.6
6-108 5.35 ±0.05 3.50 ±0.1 1.10 ±0.05 2.55 ±0.1 4.9 2.6
6.3-111 5.65 ±0.05 1.80 ±0.05 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-102 5.65 ±0.05 2.20 ±0.1 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-112 5.65 ±0.05 2.60 ±0.1 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-101 5.65 ±0.05 2.60 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
6.3-116 5.65 ±0.05 2.60 ±0.1 1.05 ±0.05 2.60 ±0.1 5.15 2.6
6.3-103 5.65 ±0.05 3.00 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
6.3-109 5.65 ±0.05 3.50 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
8-156 7.35 ±0.05 1.80 ±0.05 0.90 ±0.05 3.80 ±0.1 6.8 3.0
8-117 7.30 ±0.05 1.80 ±0.05 0.90 ±0.05 3.60 ±0.1 6.8 3.0
8-108 7.30 ±0.05 1.80 ±0.05 0.90 ±0.05 2.50 ±0.1 6.8 3.0
8-152 7.30 ±0.05 2.00 ±0.05 0.85 ±0.05 3.50 ±0.1 6.8 3.0
8-153 7.30 ±0.05 2.00 ±0.05 0.85 ±0.05 2.65 ±0.1 6.8 3.0
8-126 7.30 ±0.05 2.10 ±0.1 0.90 ±0.05 3.60 ±0.1 6.8 3.0
8-140 7.30 ±0.05 2.20 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-119 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-132 7.30 ±0.05 2.60 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-136 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-138 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-149 7.30 ±0.05 2.60 ±0.1 1.05 ±0.05 3.70 ±0.1 6.8 3.0
8-151 7.30 ±0.05 2.60 ±0.1 1.05 ±0.05 2.70 ±0.1 6.8 3.0
8-150 7.30 ±0.05 3.00 ±0.1 1.05 ±0.05 3.70 ±0.1 6.8 3.0
8-139 7.30 ±0.05 3.00 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-102 7.35 ±0.05 3.00 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-103 7.30 ±0.05 3.00 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-107 7.30 ±0.05 3.00 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-118 7.30 ±0.05 3.00 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-106 7.30 ±0.05 3.10 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-115 7.35 ±0.05 3.50 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-125 7.30 ±0.05 3.50 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-109 7.25 ±0.05 3.50 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-113 7.35 ±0.05 3.50 ±0.1 1.40 ±0.05 3.50 ±0.1 6.8 3.0
8-116 7.30 ±0.05 3.50 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-142 7.30 ±0.05 3.50 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-124 7.30 ±0.05 4.00 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
10-117 9.30 ±0.1 2.50 (+0/-0.15) 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-114 9.30 ±0.1 3.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-109 9.30 ±0.1 3.50 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-118 9.30 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-121 9.30 ±0.1 4.00 ±0.1 1.40 ±0.05 5.10 ±0.1 8.8 3.3
10-108 9.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
12-106 11.20 ±0.1 3.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-105 11.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-104 11.25 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-108 11.25 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12.5-115 11.70 ±0.1 4.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.2 3.3
12.5-103 11.75 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-113 11.70 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-107 11.75 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-114 11.70 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-101 11.70 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-105 11.70 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.2 3.3
13-101 12.20 ±0.1 3.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-108 12.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-102 12.20 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-107 12.30 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.7 3.3
13-111 12.20 ±0.1 5.00 ±0.1 1.40 ±0.05 5.00 ±0.1 11.6 3.3
13-103 12.25 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-105 12.20 ±0.1 5.00 ±0.1 1.80 ±0.05 5.10 ±0.1 11.6 3.3
13-106 12.25 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.6 3.3
13-110 12.20 ±0.1 5.00 ±0.1 1.40 ±0.05 7.50 ±0.1 11.6 3.3
14-101 13.20 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 12.6 3.3
14-104 13.20 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 12.6 3.3
14-102 13.30 ±0.1 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 12.7 3.3
16-110 15.20 +0.05/-0.15 4.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-106 15.20 +0.05/-0.15 4.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-105 15.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.5 3.8
16-116 15.20 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-114 14.90 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 8.00 ±0.1 14.3 3.8
16-103 15.05 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.5 3.8
16-111 15.20 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-102 15.20 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16.5-101 15.70 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
18-112 17.10 +0.05/-0.15 4.50 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-107 17.10 +0.05/-0.15 5.00 ±0.1 1.70 ±0.05 7.80 ±0.1 16.5 4.8
18-104 17.30 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.7 4.8
18-114 17.10 +0.05/-0.15 5.00 ±0.1 2.30 ±0.05 8.00 ±0.1 16.5 4.8
18-116 17.25 +0.05/-0.15 5.00 ±0.1 1.75 ±0.05 7.80 ±0.1 16.5 4.8
18-108 17.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-115 17.10 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 10.00 ±0.1 16.5 4.8
18-102 17.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-110 17.10 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 7.80 ±0.1 16.5 4.8
18-101 17.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 10.00 ±0.1 16.5 4.8
18-103 17.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-118 17.25 +0.05/-0.15 6.00 (+0/-0.15) 1.75 ±0.05 7.80 ±0.1 16.5 4.8
19-104 17.60 +0.05/-0.15 5.00 ±0.1 1.70 ±0.05 7.80 ±0.1 17 4.8
19-106 18.20 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-108 18.20 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 8.00 ±0.1 17.5 4.8
19-101 18.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-103 18.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-102 18.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.00 ±0.1 17.5 4.8
19-105 18.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.00 ±0.1 17.5 4.8
19-107 18.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.50 ±0.1 17.5 4.8
20-104 19.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 10.50 ±0.1 18.6 5.8
20-101 19.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 18.6 5.8
20-105 19.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.50 ±0.1 18.6 5.8
20-106 19.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.30 ±0.1 18.5 5.8
22-101 21.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 7.80 ±0.1 20.4 5.8
22-103 21.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.00 ±0.1 20.5 5.8
22-104 21.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.50 ±0.1 20.4 5.8
22-105 21.00 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.50 ±0.1 20.4 5.8
22-106 21.10 +0.05/-0.15 6.50 ±0.1 2.30 ±0.05 10.50 ±0.1 20.5 5.8
22-107 21.00 +0.05/-0.15 6.80 ±0.1 1.75 ±0.05 10.00 ±0.1 20.4 5.8
25-102 24.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.00 ±0.1 23.5 6.8
25-103 24.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 12.50 ±0.1 23.4 6.8
25-101 24.00 +0.05/-0.15 6.50 ±0.1 1.80 ±0.05 12.50 ±0.1 23.4 6.8
