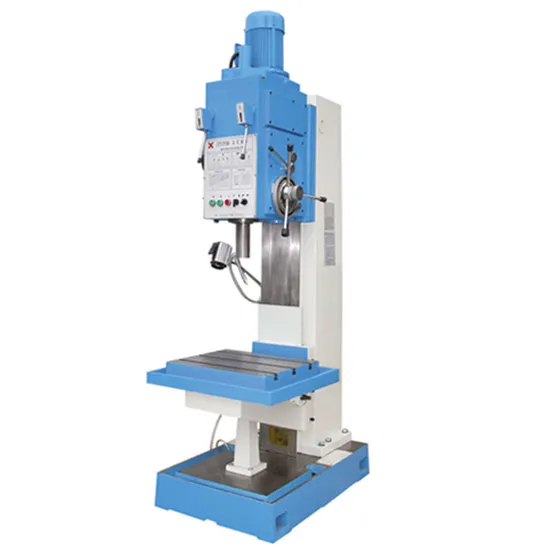

Vertical Drilling Machine Z5140b with Square Column

Product Description

Vertical Square Column Core Drilling Machine Z5140B
Features:
1. Z5140B and Z5140B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Z5150B and Z5150B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
6.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.
7.High accuracy, high efficiency, high automation and high flexibility.

Standard accessories:
Vertical drilling machine
Operation manul
Certificate
Packing list
Three-jaw drill chuck
used to drill the first card
Her taper with a short set of adjustable
Retreat sets of wedge
Specifications:

Specification	Unit	Z5140B	Z5140B-1	Z5150B	Z5150B-1
Max drilling diameter	mm	40		50
Spindle taper	/	MT4		MT5
Stroke of spindle quill	mm	250
Spindle box travel(manual)	mm	200
Spindle speed steps	/	12
Spindle speed range	r.p.m	31.5-1400
Spindle feed steps	/	9
spindle feed range	mm/r	0.056-1.80
Table size	mm	560 x 480	800 x 320	560 x 480	800 x 320
Longitudinal/cross travel	mm	-	450/300	-	450/300
Vertical travel	mm	300
Max distance between spindle and table surface	mm	750	550	750	550
Main motor power	kw	3
Overall size	mm	1090x905x2465	1300x1200x2465	1090x905x2465	1300x1200x2465
Net weight	kg	1250	1350	1250	1350

---
