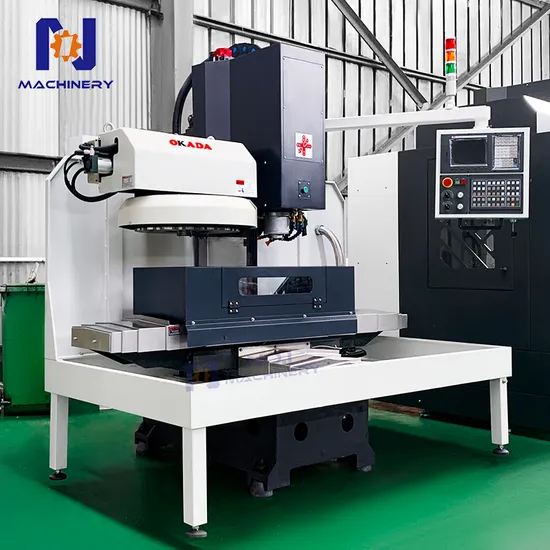

Xk7130 New CNC Milling Machine CNC Bed Type Milling Machine for Metal Processing

Product Description

Product Description
The main performance characteristics :
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the lead screw, and prolongs its service life.
Product Parameters

Item Model	Unit	XK7130
Size of worktable	mm	800*300
T-shaped groove for table	mm	3-16*80
Maximum load on table	kg	200
X/Y/Z rail width	mm	30/30/30
X/Y/Z ball screw specification	mm	3010/3010/3010
X/Y/Z Axis stroke	mm	600*360*450
X/Y/Z motor torque	NM	6/6/10(Contracting brake)
Spindle face to table position	mm	120-520
Distance from Spindle Center to column	mm	380
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	48/48/48
Spindle end taper/diameter	mm	BT40-120
Spindle motor power	kw	5.5
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Hat/Disc
The capacity of knife storage	tools	16
Maximum tool diameter/weight	mm/kg	78/90/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	2800
External dimensions	mm	2000*1800*2450

Detailed Photos

CONTROL SYSTEM Standard: GSK / KND control Optional : Siemens , FANUC, Syntec ect.

TAIWAN PRECISION SPINDLE Spindle taper is BT40; Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm

HARD/LINEAR GUIDE RAIL Standard : Hard Guide Rail, Optional : Taiwan HIWINLinear Rail.

TAIWAN ATC Standard : 16 Arm tool magazine, 24 arm type ATC is optional.

Packaging & Shipping

Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after the BL date.Q2:Can we visit your factory before ordering? A2:Sure.All new and old friends are welcome to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4:What's the MOQ? A4:One set only.Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and the American market, and always win high reputation. So you can rest assured of our quality products and our best services.Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services.Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.

---
