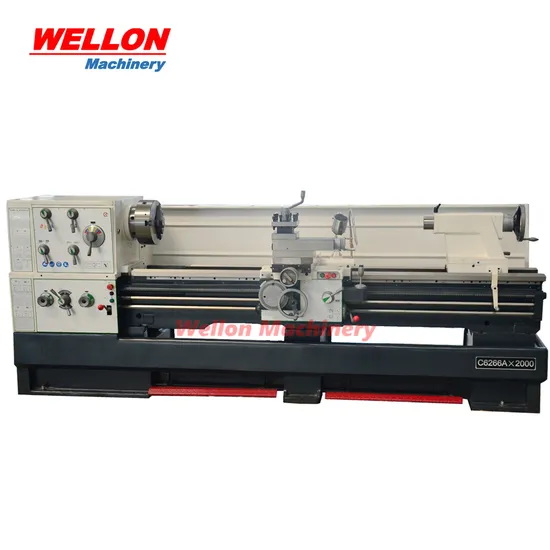

C6266ax1500mm Horizontal Gap Bed Metal Turning Lathe Machine

Product Description

Products Description:
C6266Ax1500mm Horizontal Gap Bed Metal Turning Lathe Machine
Performence Features:
Big Bore Lathe Machine
removable bridge for machining of large parts
high accuracy and low-noise operation even at high cutting power
heavy and large bed
hardened guideways (>HB 400)
large spindle capacity 105 mm for machining of long parts
manual central lubrication
multi-disk clutch for soft start up with heavy parts
automatic lubrication of head stock and main drive
protected leadscrew
overload protection for feed shaft and leadscrew
support moves in linear and cross direction via rapid feed
Technical parameter:

TYPE	C6266A
Swing Over Bed	600mm
Swing Over Cross Slide	440mm
Swing in Gap	900mm
Length of Gap	250mm
Center Height	400mm
Distance Between Centers	1500mm
Width of Bed	400mm
Max. Section of Tool	25x 25mm
Max. Travel of Cross Slide	368mm
Max. Travel of Compound Rest	230mm
Spindle Bore	105mm
Spindle Nose	D1-8
Taper of Spindle Bore	113mm(1:20)/MT5
Spindle Speed Step	16
Range of Spindle Speed	25~1600rpm
Leadscrew Pitch	40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range	7/16-80T.P.I. (54 kinds)
Metric Threads Range	0.45-120mm (54 kinds)
Diametrical Pitches Range	7/8-160DP (42 kinds)
Module Pitches Range	0.25-60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw	0.044-1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw	0.00165"-0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw	0.022-0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw	0.00083"-0.02774"/rev (25 kinds)
Travel of Tailstock Sleeve	235mm
Dia. of Tailstock Sleeve	90mm
Morse Taper of Tailstock Sleeve	MT5
Power of Main Motor	7.5kW(10HP)
Power of Coolant Pump	0.09kW (1/8HP)
Overall Dimension (L×W×H)	321×123×160cm
Packing Size (L×W×H)	324×114×184cm
Net Weight	3065kg
Gross Weight	3535kg

STANDARD ACCESSORIES:
3, 4-JAW CHUCK AND ADAPTER,
4-WAY TOOL POST,
STEAD REST,
FOLLOW REST,
DEAD CENTERS,
FACE PLATE,
DIRVE PLATE,
DEAD CENTERS
REDUCTION SLEEVE
FOOT BRAKE,
WORK LAMP,
FULL LENGTH SPLASH GUARD
LONGITUDINAL MECHANICAL STOP,
SOME TOOLS
OPTIONAL ACCESSORIES:
TAPER TURNING ATTACHMENT
THREAD CHASING DIAL
QUICK CHANGE TOOL POST
2 AXIS DRO
LIVE CENTER
CHUCK GUARD
TOOL POST GUARD
LEAD SCREW COVER
