CNC Series Saddle Moving Grinder Surface Grinding Machine

Product Description

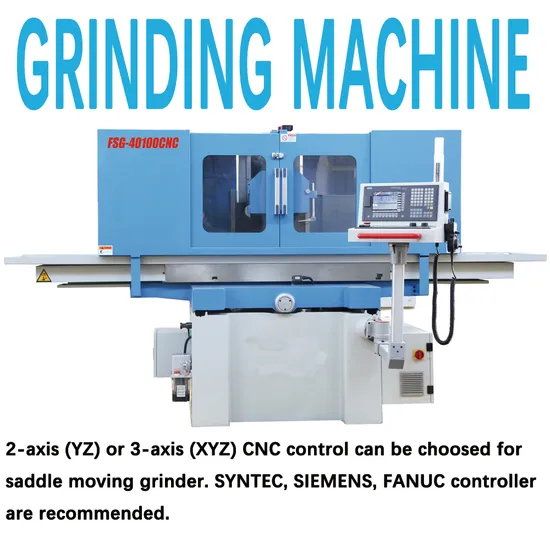

• 2-axis (YZ) or 3-axis (XYZ) CNC control can be choosed for saddle moving grinder. SYNTEC, SIEMENS, FANUC controller are recommended.
• Elaborately-designed closed safe guard with safety-switch, not only fave good apperance but also safety operaing field.
• Precision grind spindle with preload high precision angular ball bearing and drive by V3 motor, runs in maintenane-free, low vibration, and no noise.
• CNC-2 model: YZ axis numerical control and linkaged, drove by AC servo motor and ball screw. X axis drove by hydraulic.
• CNC-3 model: XYZ axis numerical control and linkaged, drove by AC servo motor and ball screw.

SPECIFICATION		Model
		FSG-2550CNC	FSG-30100CNC	FSG-40100CNC
Table Size	mm	254x508	305x1020	406x1020
Magnetic Chuck Size	mm	250x500	300x1000	400x1000
Max. Distance From Spindle Center To Table	mm	450	580
Max. Loading Capacity (Include Chuck)	kg	200	400	600
X Axis Feed
Feed Speed	m/min	5~18 / CNC-3 (5-25 / CNC-2)
Micro Feed Rate	mm	0.005 / CNC-3 (-- / CNC-2)
Y Axis Feed
Feed Speed	m/min	0~1
Micro Feed Rate	mm	0.005 / CNC-3
Z Axis Feed
Feed Speed	m/min	0~1
Micro Feed Rate	mm	0.005
Spindle Rotating Speed	r/min	2850(50hz) / 3450(60hz)	1450(50hz) / 1750(60hz)
Grind Wheel Size	mm	200x20x31.75	350x40x127
Spindle Motor Power	kw	2.2	4
Floor Space (L*W*H)	mm	2800x2000	5000x2400
Gross Weight	kg	1900	3500	4400
Package Size	mm	2200x2000x2150	3750x2250x2250

---
