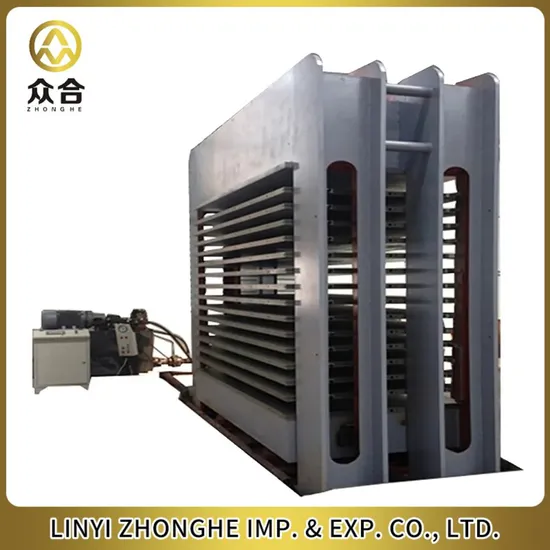

Woodworking Plywood Machine Hot Press with CE Hydraulic for Plywood Producing

Product Description

Product Description
1.Pressure:400t / 500t / 600t / 800t / customize
2.The size of the press plate: 3'x6' / 5'x5'/4'x8' / customize
3.Heating medium:thermo oil / heat steam
4.Control system:automatic / manual Automatic control are carried out by PLC control,which use big size touch screen to operate.
5.Structure:The whole structure adopts thicken steel sheet.
6.Hot press plate:42mm
Detailed Photos
Product Parameters

No.	Model	BRY21-4*8-600T-15L
1	Hot press plate size	2700*1370*42 mm
2	Opening size	70 mm
3	Hydraulic pistons	4 units, diameter 280mm
4	Pressure Capacity	600 Tons
5	Hydraulic System	hand and automatic control
6	Hydraulic System allowed pressure	25 M pa
7	Low pressure Pump	250 ml/rev,11KW motor
8	High pressure Pump	10 ml/rev, 5.5KW motor
9	Heating Medium	Steam or Heat Transfer Oils

Company Profile

Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and ma-chine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


Certifications

Packaging & Shipping
<1> Before Order ship, our engineer will test machine make sure it is in good condition.
<2> When loading, we will share pictures with you.
<3> After ship leaving, we will offer container and ship information for your reference.
<4> Offer all documents for you do custom clearance.
Frequently Asked Questions

1. What products does your company offer?
Our company specializes in manufacturing and supplying equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
• Brazil (where we have local distributors)
• Argentina
• Paraguay
• Fiji
• Pakistan
• Bulgaria
• Ghana
We have experience working with these countries and can arrange shipping and handling in compliance with local regulations.

---
