China Manufacturer Sectional Hydraulic Directional Control Valves Dle

Product Description

Performance Characteristics:

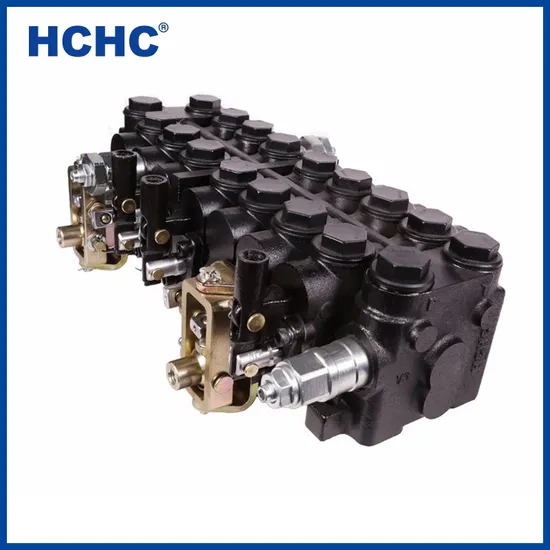

Hydraulic multi-way directional control valve DL*-F15L is composed of oil inlet section, oil outlet section and valve sections. The oil outlet section of series DL1-F15L with pressure output port, it can be used in tandem with other hydraulic components. This valve is featured with compact structure, high pressure, advanced and reliable performance, able to implement near or remote control of various working units, widely applied to engineering machinery, mining machinery and the hydraulic system of other machineries.
Internal check valve: each valve section has an internal check valve to prevent the oil backflow.
Internal overflow valve: the inside of oil inlet section is equipped with a pilot-operated overflow valve to control the system pressure.
Oil circuit type: it can be implemented parallel type, series type or series parallel combination type.
Auxiliary valve: according to the requirement, overload valve and oil filling valve can be added at both ends of valve section.
Structure type: sectional valve, any 1 to 10 sections may combine upon customer's requirement.
Spool function at neutral position: A, Z, O, Y, etc.

Nominal Pressure (bar)	Nominal Size (mm)	Nominal Flow Rate (L/min)	Valve Shaft Stroke (mm)	Spool Number n	Weight (kg)
200	15	65	7+7	1~10	2.9+2.6n

---
