85kVA 68kw AC Synchronous Brushless Single Bearing Diesel Alternator Marine Generator

Product Description

Product Description

Product Parameters

Description:	Single phase or three-phase AC brushless synchronous Alternators
Brand:	AEE (Dingol or OEM for option)
Frequency:	50Hz and 60Hz for option
Power range:	8-2325kva at 50Hz				10-2688kva at 60Hz
Poles :	4 poles				2 poles
Power Factory:	0.8 and 1 power factory for option
Rotational speed:	1500rpm and 1800rpm for option				3000rpm and 3600rpm for option
Rated voltage:	110-690V
Insulation class:	H
Temperature class:	H (can meet class F working and standby working)
Bearing:	Single bearing and Double bearing for option
Protection class:	IP22/23
Features:	1) A. V. R. (Automatic Voltage Regulator)control for trouble-free operation under the most demanding condition.2) 12 wire reconnectable winding.3) 100% famous brand copper wire.4) 2/3 pitch standard windings avoids excessive neutral currents.5) Dynamically balanced rotor ensures the small vibration and noise in operation. 6) Optional Permanent Magnet Generator(PMG) and auxiliary winding system provides sustained short circuit capability. option.7) Standard SAE connection enable the generator to be coupled with most of the famous engines in the world.8) Single or two-bearing structure with seal-for-life bearing.9) Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.10) Wide voltage range by terminal reconnection and AVR voltage adjustment ensures the generator to fit for most of the worldwide power system. 11) Built to confirm with all leading industrial standards.

Technical Parameters:1) Rated voltage 400V, 110V-690V for option2) Three phase, single phase for option3)50Hz/1500rpm and 60Hz/1800rpm for option3) Enclosure: IP22/23 4) Insulation class H5) Adjusting rate of stable voltage≤ 1%6) Transient state voltage≤ -15% - +20%7) Wave aberration rate of voltage THD≤ 3%8) Telephone harmony wave factor of telephone THF≤ 2%

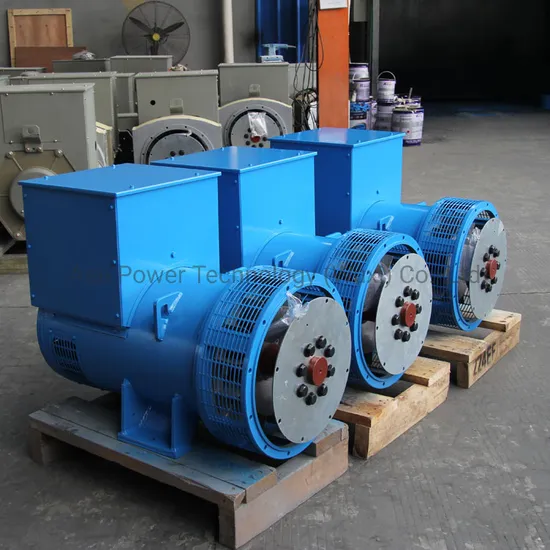

Detailed Photos
Our Advantages Company Profile AEE power technology is a professional manufacturer specialized in manufacturing alternators and generators. Our main products are 5-2500 kw AC synchronous brushless alternators, refrigerator truck alternators, light-tower alternators, telecommunication DC alternators etc and can be equipped with Perkins ,Cummins,Doosan,Deutz ,Shanghai diesel ,Yuchai, Fawde ,Yangdong and Yanmar engines etc .
Based on the strong technology, excellent operation ,sophisticated equipments and long experience ,AEE provides high-qulity overall solutions of electric power products including diesel generators ,Lighting Tower generator ,gasoline generator ,Inverter generator ,Battery engergy storage ,water pumps and Hybrid solar energy etc .These products are widely used for transportation,high buildings, communications, logistics, fire fighting, field operations, marines, harbors and mining.
Meanwhile,Aee help customers to implement the operation strategy of supply chain integration as well as cost reduction. For several years'efforts, excellent quality of products and professional service have got us unanimous approval and favorable comments from all around the world. Exported more than 30 countries and regions such as Europe, America, Australia, south-east Asia, mid-east, Africa, with Export Product License, TUV, CE certificate.
We adhere to the principle of "Quallity first " as enterprise's lift .Aee group hope our good performance products can obtain to establish long-term cooperative relationship with customers from all of the world and achieving Win-win .
