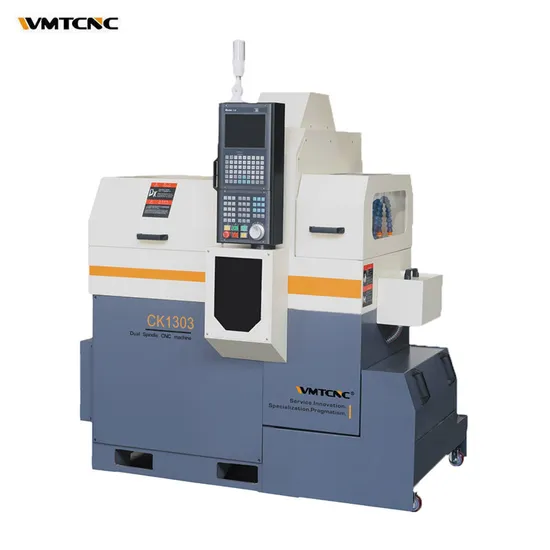

CNC swiss type turning lathe machine CK1303 swiss-type/sliding headstock cnc lathe

Product Description

Product Description
CNC swiss type turning lathe machine CK1303 swiss-type/sliding headstock cnc lathe main features:
1. CK1303 Spindle Movable Type CNC machine has features of reasonable structure, fast tool changing, high reliability. 2. The machine, comparedwith all others of its class, can obviously reduce times of feeding material, and improve efficiency when processing slender parts. 3. A one-timematerial feeding is enough for processing full length of parts that less than 150mm. 4. The material feeding part of the machine is equipped with automatic feeder, and the catching part can be installed with short and long partcatching device (can order according to your need) to realize the processing mode that one person minds several machines, so as to savelabour. 5. This kind of machine is the best for processing shaft parts that have complicated shape and require high precision and mass production in carand motor accessory, medicine, micro- axis, electronic component, pneumatic tool, clock industries etc.

Technical Parameter	CK1303
Power	Total Input Power	3.5kW
CNC System	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Max. Program	9999.999
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	24000mm/min
	Y Axis Rapid Feed Speed	24000mm/min
	Z Axis Rapid Feed Speed	24000mm/min
	Max Bar Diamater	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	980mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	60mm (Diameter)
	Y Axis Travel	200mm
	Z Axis Travel	180mm
	X Axis Servo Motor Power	0.75kW
	Y Axis Servo Motor Power	0.75kW
	Z Axis Servo Motor Power	0.75kW
	Guide Rail Form	Linear Guide Rail
Gang Tooling System	Tools Arrangement	10pcs
	Turning & Milling Tools	6pcs
	Tool Size	10*10mm
	Front Drilling	4pcs
	Tool Size	ER11/Φ16
Cooling System	Motor Power for Cutting Oil	0.18kW
	Cooling Tank Capacity	55L
Lubrication System	Motor Power	25W
	Capacity	2L
Pneumatic System	Input compressed air pressure	0.4--0.6Mpa
Machine Size	Length*Width*Height	1530*1150*1790mm
	Machine Weight	8000kg
Optional configuration
Rotating Center Frame	Valid Traveling	100mm
Side Milling Live Tool	Chuck ER11+ER16	2pcs+1pc
	Power	0.4kW
	Speed of Rotation	5000r/min

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements.

---
