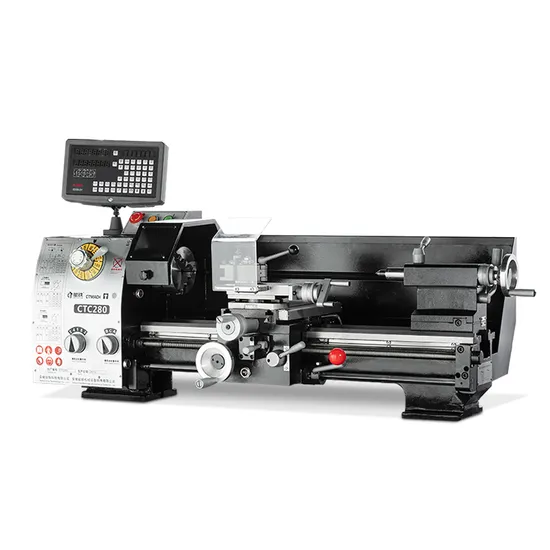

Small Mini Bench Metal Manual High Precision Lathe Ctc280

US$2,965.00
1-4 Sets
US$2,885.00
5-9 Sets
US$2,780.00
10+ Sets

Basic Info.

Model NO.
Ctc280
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1100*440*510mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Packaging & Delivery

Package Size
110.00cm * 44.00cm * 51.00cm
Package Gross Weight
210.000kg

Product Description

Max. swing over bed 280mm
Max. swing over cross slide 160mm
Distance between centers 610mm
Spindle taper MT4
Spindle bore 26mm
Max. travel of tail-stock sleeve 85mm
Taper of tail-stock MT2
Middle carriage travel 130mm
Small carriage travel 65mm
Metric thread/Grade 0.25~2.5mm/15
Inch thread/Grade 12~96T.P.I/10
Transverse feed 0.015~0.188mm/r
Longitudinal feed 0.03~0.375mm/r
Spindle speed range/Grade 80~1600r/min(12)
Motor power 750W
Net weight/Gross weight 190KG/210KG
Overall dimensions 1100x440x510mm
Packing Size 1200x600x600mm
