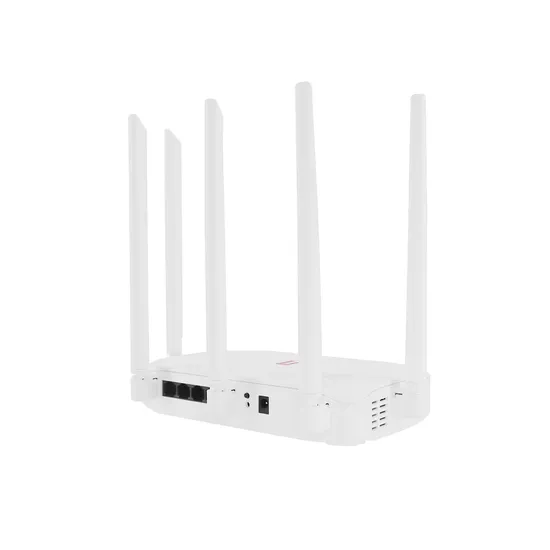

WiFi 7 Wireless Internet BE3600 Gigabit Router 3LAN 1WAN Easy Mesh Gaming Wifi7 Supports Extendable Wifi Router About Product The WR3601 is a high-performance enterprise-grade WiFi6 router that supports 802.11ax technology. It operates in the 2.4GHz and 5.8GHz wireless frequency bands, meeting the demand for simultaneous high-speed wireless internet access for up to 128 users. With gigabit network interfaces, it can achieve a maximum wireless access speed of 573.5Mbps in 2.4GHz 802.11ax mode and 2402Mbps in 5.8GHz 802.11ax mode, resulting in a total wireless speed of up to 2976Mbps. This router is characterized by its high performance, high gain, high receiver sensitivity, high bandwidth, low latency, high density, and high user capacity. It not only covers a larger area but also provides higher wireless transmission performance and stability. With its stylish design, easy installation, and support for MESH self-organizing network and relay functions, it can quickly expand wireless coverage. This makes it the perfect choice for wireless access in high-density, high-bandwidth environments such as homes, shops, restaurants, and enterprises. Product Feature 1) Industrial device design with built-in protections such as electrostatic discharge, surge, and fast transient pulses, easily adapts to various harsh environments, ensuring long-term stable and reliable operation. 2) Provides 802.11b/g/n WiFi 300M wireless access with high-gain antennas, covering up to 30 meters in open environments; also offers 10/100Mbps Ethernet access, supporting up to 16 concurrent users. 3) Supports WPA-PSK/WPA2-PSK, SSID hiding, and blacklist features to effectively safeguard user data security. 4) Rich status indicator lights, comprehensive status overview, and easily readable log system to monitor device operational status effortlessly. 5) Built-in quick setup wizard for easy broadband WiFi internet access without requiring specialized knowledge. 6) Continuous product updates, feature enhancements, and performance optimizations to adapt to various network environments and improve user experience. Package Contents - 1 CPE Router - Quick Installation Guide - Power Adapter
| Hardware configuration |
| Main Chip | MT7981B+MT7976+MT7531 |
| High-performance enterprise-level chip |
| Frequency | ARM dual-core 1.3GHz |
| Memory | 512MB |
| Flash | 128MB |
| Wireless Technology | - 2.4G WiFi 2*2 802.11b/g/n/ax (theoretical maximum speed up to 574Mbps) |
| - 5.8G WiFi 3*3 802.11a/n/ac/ax (theoretical maximum speed up to 2402Mbps) |
| - 1024QAM high-speed access rate, OFDMA high-density user access |
| - OFDMA/MU-MIMO uplink/downlink |
| - BSS Color spatial reuse |
| - Space-time block code (STBC), low-density parity check (LDPC), beamforming TX/RX for uplink and downlink |
Power-saving features: single antenna standby technology, dynamic MIMO power-saving technology, enhanced automatic power-saving
transmission technology, packet-by-packet power control technology, etc. |
| Device Interfaces | - WAN*1/LAN*3 10/100/1000Mbps adaptive |
| - DC power interface compatible with power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length above 9.5mm |
| Buttons | - Reset button for factory reset (long press for 6 seconds to reset) |
| - WPS button for easy password-free connection |
| Indicators | Status indicators |
| Antennas | - External 2.4G 5dBi rubber rod antennas * 2 |
| - External 5G 5dBi rubber rod antennas * 4 |
| Power | DC 12V/1A, positive outer and negative inner |
| Operating/Storage Temperature | -10ºC~45ºC/-20ºC~70ºC |
| Operating/Storage Humidity | 10% to 90% (non-condensing) / 5% to 90% (non-condensing) |
| Dimensions | 208.6*129.5*40.6mm(excluding antennas) |
| Weight | Approximately 680g |
