Lws 3-Phase Decanter Centrifuges - Tricanter

Product Description

Product Description

PRODUCT DESCRIPTION

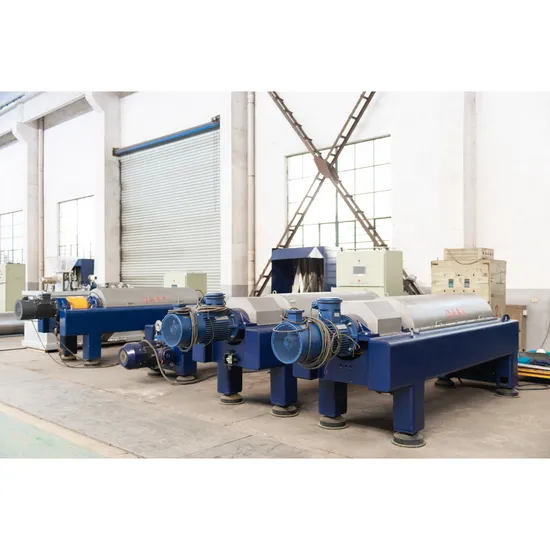

LWS Three-phase Decanter Centrifuges


This type is mainly used for solid-liquid-liquid separation, which means to separate a solid phase (with its density being the maximum) with two liquid phases of different densities. Based on a certain differential, the Bowl and spiral revolve in the same direction at high speeds, and the materials enter the equipment through the feeding pipe. Under the action of centrifugal force, the solid matters will deposit to form a sediment layer on the Bowl wall, and the two liquid phases will form a light liquid ring and a heavy liquid ring respectively, successively forming a solid layer, light liquid layer and heavy liquid layer inward from the Bowl wall. The spiral works continuously to push the solid matters on the Bowl wall to the conical end of the Bowl and then discharge them out of the equipment through the slag discharging port. The light liquid phase continuously flows out of the overflow port at the big end of the Bowl, while the heavy liquid phase is discharged out through the centripetal pump also at the big end. Thus, continuous separation of three phases is realized.
DRIVING TECHNOLOGY
Dual-motor and dual-frequency driving mode is adopted for better differential regulation;
It is more adaptive to the change of working conditions to ensure the separation effect;
Dynamic feedback design is employed to reduce power consumption effectively.
Hydraulic Gearbox System
Moisture content in the mud cake is always maintained at the minimum
The liquid after treatment is highly clarified
The power to transport the solid substances varies with load
Gearless driving device is applied
Breakage of parts caused by excess load is avoided
Torsion-free vibration (flutter)
"Constant" humidity of mud cake
Safety pin design ensures operation safety
Being insensitive to the increase/decrease of feeding quantity, it minimizes the material blocking possibility
ADVANTAGES OF DECANTER CENTRIFUGE
MAIN TECHNICAL PARAMETERS

---
