HOLYKELL Smaller Diameter Submersible Borehole Level Sensor HPT607-E

Product Details

Product Description

Product Description

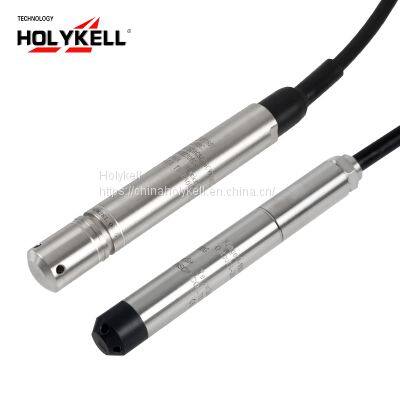

This submersible borehole level sensor is a perfect device for groundwater, borehole and well water level measurements. It features a small diameter Ø16 housing and unique filtration designs.
Parameter HPT607-E
Pressure Range 0-2 Bar…..30 Bar/0-20m...300m H₂O optional
Accuracy ≤ ±0.5%F.S@25 degree C (Typical)
Long Stability 0.1%F.S±0.05%
Working Temp -30℃~70℃
Temperature Compensation 0℃~50℃ (Full temp span 1%F.S. Accuracy)
Medium compatible Compatible with 316L Stainless Steel
Output 4~20mA,0.5~4.5 V Non-Radiometric,RS485 MODBUS
Power Supply 10~30Vdc,5Vdc±10%,10~30Vdc
Zero Temp. Drift 0.05%FS/℃(≤100kPa); 0.04%FS/℃(>100kPa)
Electronic connection Fixed cable and water proof IP68
Response time ≤10ms
Advantages
A Ø16mm only probe for smaller wells or boreholes
Two unique filtration designs for different ranges
Automatic temperature compensation
Lightning protection, shock and friction resistant
Sensor compatible with most monitoring equipment
Fully sealed IP68 structure for long immersion in water

---
