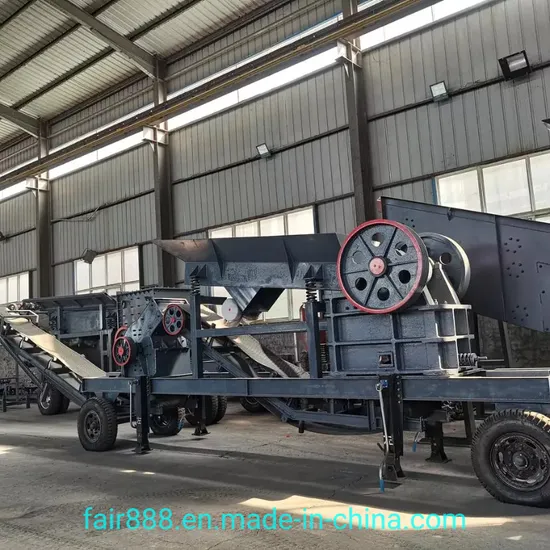

Portable Mobile Mini Stone Rock Crushing Machine Jaw Crusher for Sale

Product Description

Product Description
Jaw Crusher is a common crushing equipment, also known as crusher or crushing machinery. It is a device that uses power to drive the relative motion between the movable jaw plate and the static jaw plate to crush materials.
The jaw crusher is composed of a jaw plate, movable jaw plate, transmission device, adjustment device, eccentric shaft, and spring. The material enters the crushing chamber through the feed port and is crushed by the squeezing force between the jaw plate and the movable jaw plate. The movable jaw plate makes the material continuously broken, crushed, and ejected in the crushing cavity through the rotation of the eccentric shaft and finally reaches the required particle size requirements. The adjustment device can adjust the size of the discharge port to control the particle size of the finished product.
When selecting a jaw crusher, factors such as material characteristics, production requirements, equipment performance, and cost need to be considered. Different models and specifications of jaw crushers have different processing capabilities and application ranges. At the same time, reasonable maintenance and upkeep can extend the service life of the jaw crusher and improve work efficiency.
working principle
Feeding: The material enters the crushing chamber from the feeding port and is crushed by the squeezing force between the jaw plate and the movable jaw plate. The jaw plate is fixed, while the movable jaw plate moves through the rotation of the eccentric shaft.
Extrusion crushing: The movable jaw plate causes the materials to be continuously broken, crushed, and ejected in the crushing cavity through the rotation of the eccentric shaft. The material is squeezed between the jaw plate and the movable jaw plate, generating huge pressure to break the material into smaller particles.
Discharge: The crushed materials are discharged through the discharge port. The size of the discharge port can be adjusted by the adjustment device to control the particle size of the finished product.
It should be noted that during the crushing process, the hardness and strength of the material will affect the crushing effect. Harder and stronger materials require more force to break, while softer and brittle materials require less force to achieve crushing. Therefore, when selecting a jaw crusher, it is necessary to select suitable equipment based on the characteristics and processing requirements of the material.
Detailed Photos
Product Parameters

Model FM-JC	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Power (kW)	Overall Dimension (mm)
PE150x250	150x250	125	10-40	1-5	5.5	875x758x850
PE200x300	200x300	180	15-50	2-10	7.5	910x750x990
PE250x400	250x400	210	25-60	5-20	15	1450x1315x1296
PE400x600	400x600	350	40-100	15-65	30	1565x1732x1586
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PEX150x750	150x750	120	10-40	5-16	15	1310x1118x1145
PEX250x750	250x750	210	15-50	15-30	22	1440x1751x1515
PEX350x750	350x750	300	15-50	18-40	30	1485x1680x1648
PEX250x1000	250x1000	210	15-60	15-52	30	1730x1950x1400
PEX250x1200	250x1200	210	15-60	20-60	37	1730x2150x1400
PEX300x1300	300x1300	250	25-60	30-105	55	2000x2320x1730

Our Advantages
1. High crushing ratio, even particle size, low noise.
2. Strong adaptability to materials, and wide market.
3. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
4. Reliable quality can be guaranteed for many years without repair.
5. Good particle size, the crushing cavity, and jaw plate tooth have been designed specially.
6. It is well suited for running in very poor working environments.

Application
Mines and Quarry: A jaw crusher can be used to crush various ores, stones, and ore tailings, such as iron ore, copper ore, gold ore, limestone, granite, etc. It can crush larger chunks of ore into the required particle size, making it easier to handle and transport.
Construction and Infrastructure Engineering: In construction and infrastructure engineering, jaw crushers are commonly used to process materials such as construction waste, concrete fragments, and masonry. By crushing these waste materials into reusable particles, the storage and disposal costs of waste materials can be reduced, while also helping to protect the environment.
Metallurgical and chemical industry: Jaw crushers are also widely used in the metallurgical and chemical industries. It can be used to crush and process metal ores, metallurgical waste, chemical raw materials, etc. By crushing and pulverizing these materials, the required particle size and particle shape can be obtained to meet the requirements of subsequent smelting and chemical processes.
Cement and building materials industry: Jaw crushers are used in the cement and building materials industry to process raw materials such as limestone, clay, gypsum, etc. It can break these raw materials into the required particle size for preparing cement, bricks, and other building materials.
Other industries: Jaw crushers can also be used to crush wood, plastic, paper, food waste, and other materials for subsequent processing and recycling.
Company Profile
Henan Fair(Fier) Machinery Co. Ltd Since 1997 it is located in Zhengzhou city China's transportation hub city. One-stop Industrial mixing and packaging and crushing expert.FIER already helped nearly 2,000 people find jobs directly or indirectly. Fier Machinery products sales network in more than 30 countries and regions throughout China and the world.50,000 square meters of industrial plant, 10 professional production of industrial mixer, crusher, packaging machine production linesFIER Specializing in the production of industrial mixing machines, dry mortar production lines, crusher machines, Feed mills, Packing machines, Screw elevators, Stock Silos, Sand Dryer, dust collectors, drying rooms, etc single machine and production lines are widely used in construction, mining, chemical industry, building materials, feed, powder mortar, metallurgy, environmental protection, and other fields.FIER is committed to contributing to the development of your happiness. built your future, and made global customers richer. deeply domestic and foreign customers' trust and praise.
1. High crushing ratio, even particle size, low noise.
2. Strong adaptability to materials, and wide market.
3. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
4. Reliable quality can be guaranteed for many years without repair.
5. Good particle size, the crushing cavity, and jaw plate tooth have been designed specially.
6. It is well suited for running in very poor working environments.
FAQ
Question: What is the scope of application of jaw crusher?
Answer: A jaw crusher is suitable for crushing materials of various hardness and strength, including ore, stone, construction waste, limestone, etc. It is widely used in mining, construction, metallurgy, the chemical industry, and other industries.
Question: How to adjust the gap between the discharge port and the jaw plate of the jaw crusher?
Answer: Jaw crushers are usually equipped with an adjustment device, which can change the size of the discharge port and the gap between the jaw plates by adjusting bolts or hydraulic devices. For specific adjustment methods and steps, please refer to the equipment operating manual and instructions.
Question: What should be paid attention to in the maintenance and upkeep of the jaw crusher?
Answer: The maintenance and upkeep of the jaw crusher include regular lubrication, inspection and replacement of worn parts, cleaning equipment, etc. Pay special attention to keeping the equipment clean and lubricated, regularly check the fasteners and wearing parts of the equipment, and replace them in time as needed.
Question: What is the energy consumption of the jaw crusher?
Answer: Jaw crushers usually have high energy efficiency and can convert most of the energy into crushing action. At the same time, it usually has lower operating energy consumption, which can save energy and reduce production costs.
To choose a suitable model for you, you need to tell us :
1. what kind of stone do you want to crush?
2. what's the size of your stone before crushed? how many inches or mm?
3. what are your requirements for the final product size? how many inches or mm?

---
