X6323 X6325 Metal Universal Vertical Turret Milling Machine

Product Description

X6323 X6325 Metal Universal Vertical Turret Milling Machine

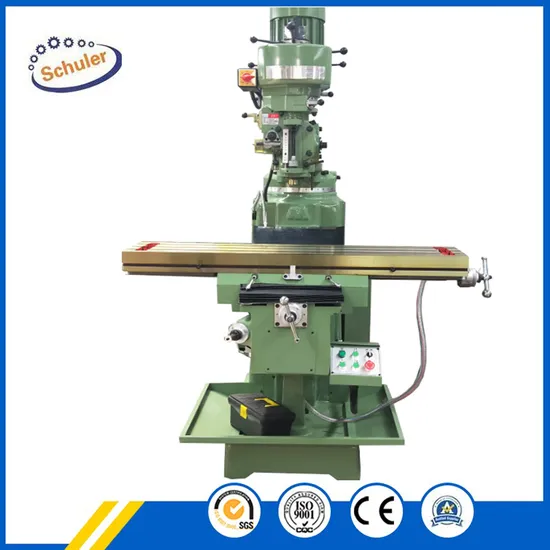

Product picture:
Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X-direction feeder
2.Y-direction feeder
3.Z-axis electric lift:
4.Digital display. for two groups and for three groups.
5.Aluminum alloy operation panel
6.Milling head protection
7.NT30 pindle NT40 spindle
Turret Milling Machine Technical Parameters:

Model	Unit	X6323
Table size	mm	230x1067
Table travel	mm	650x320x400
T-slot No. and size	mm	3x16x63
Ram travel	mm	300
Distance from spindle nose to table surface	mm	60-460
Spindle hole taper	/	Standard:R8 Optional: NT30
Spindle travel	mm	127
Spindle speed	rpm	Standard: 16steps Shift grade:50HZ 66-4540
Auto quill feed	mm/r	0.04/0.08/0.15/
Spindle motor	HP	3
Head swivel		90°
Head tilting		45°
Overall size(LxWxH)	mm	1550x1400x2150
G.W.	kg	1100
