Product Details
Product Description
Product Description

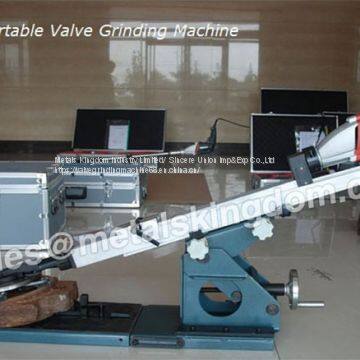

M-200 Portable Gate Valve Grinding Machine
Portable Valve Grinding and Lapping Machine
Applicstion:Gate Valve Seat,Gate Valve Core.
Grinding scope: DN80~200(3"-8")
Motor power: 1100W
Rated Voltages: 220V
Min distance of valve seal face: B>45mm
Allowed adjustable length: L≤600mm
Operating weight: 20kg
1. Main body 2.electric motor 3.power box 4.adjusting bracket 5.screw bolt 6.base escopic boom
8.arm 9grinding disc 10screw bolt 11screw bolt 12 clamping rod 13Fastening handle escopic boom lock arm 15.left or right adjusting handwheel 16.handwheel 17.sliding crame 18.screw bolt
2.OVERVIEW
Model M-200 portable valve grinder is widely used in the industries such power generation, petroleum, chemical, metallurgy and paper making as a high-tech product with national patent. It has the following characteristics:
Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Available in various field work
Applicable in grinding gate, check valves and flanges made of various materials
Grinding automatically after the installation is adjusted well
Reasonable structure design, perfect Metabo motor and high-quality imported grinding materials contribute to the grinding 3-10 times as fast as the manual one
Stepless and adjustable speed, stable power transmission and accurate lapping make the sealing face in complete contact.
portable valve grinding machines Technical Parameter
Applicstion:Gate Valve Seat,Gate Valve Core.
Grinding scope: DN80~200
Motor power: 1100W
Rated Voltages: 220V
Min distance of valve seal face: B>45mm
Allowed adjustable length: L≤600mm
Operating weight: 20kg
Looking for Valve Grinding Machine, Valve Pressure Testing Table, Pipe Cutting Machine? Metals Kingdom waiting to create business relationship with you. With 24 years’ export experiences, our Valve Grinding Equipment, Valve Test Table, Valve Pressure Bench have been welcomed in international markets. As fames China pipe beveling and cutting machine, High quality and factory price will give you.
If you are interested in our valve grinders, you can click here to visit our website.
/
>>
