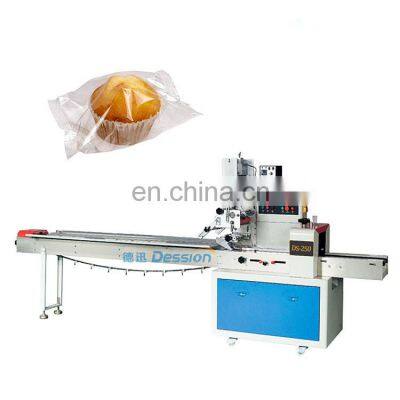

High quality Small Cupcake Packaging Machine

Product Description

Product Description
High quality Small Cupcake Packaging Machine
Product Description
Main Features
• For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
• For Easy Operation: Touch screen monitor, independant temperature PID controller,
• For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.

ITEM	DS-250B	DS-250D	DS-250E	DS-250S
Film Width	Max.250mm	Max.250mm	Max.180mm	Max.180mm
Bag Length	65~190mm / 120~280mm	90~220mm / 150~330mm	50~115mm	45~90mm
Bag Width	30~110mm	30~110mm	30~80mm	30~80mm
Product Height	Max.40mm	Max.55mm	Max.35mm	Max.35mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40~230 bags/min	40~230 bags/min	60~330 bags/min	60~330 bags/min
Power	220V, 50/60HZ, 2.4KVA
Machine Size	L)3770 * W)670 * H)1450mm
Machine Weight	800kg	800kg	800kg	800kg
Optional Device	Date Coder / Air-filling Device / Punching Device
Machine Packing	Wooden Box	Wooden Box	Wooden Box	Wooden Box

Detailed Images

	Touch Screen • Easy control • Chinese / English available
Film Roller • The film can be replaced easily on the film roller. • Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE
	Work Platform • The work platform is made of 304 stainless steel for safe packing.
Pressing Pad • The pressing pad after bag back sealing is for adjusting the bag shape and pressing extra air out.
	Strengthened Blade Holder (for 1/2/3/4 pair of blades) • High speed of fine and clean cutting and sealing bags • Positioned stop function avoides sticking blades and wasting materials.
PLC (Programmable Logic Controller) • Upgradable PLC system is for stable performance.

Application
Snack, e.g. bakery, cheese, biscuits, candyGroseries, e.g. spoon, napkinHardware & Tools, e.g. screw-driver Medical supplies, e.g. bandagesStationery, e.g. pensFood, e.g. frozen chicken, instant noodles
Packaging & Shipping
Payment: 30% deposit in advance, 70% balance before shipment by T/T.
Delivery time: 20-25 days after receiving 30% deposit.
Optional Devices
1. Punching device
2. Tear notch device
3. Linking bag control device
4. Air filling device
5. Nitrogen inflation device
Company Information
Since 2005, Dession has been the leading manufacturer of packaging machinery, including pillow type packing machine,vertical packaging machine, automatic feeding line, flowing packing machine and other supporting facilities.

During the last 10 years, Dession has more than 30 partners all over the world. Our packing machines have been shipped to various countries and areas, such as America, Brazil, Russia, British, Germany, India, Thailand, Malaysia, Vietnam
and so on.
You may aslo like
DS-320A Granule Packing Machine DS-350W Horizontal Packing Machine DS-420BZ Cup Metering Packing Machine
Contact us
For more information, please contact us by email or instant messages. Any email or message will be answered within 12 hrs.
