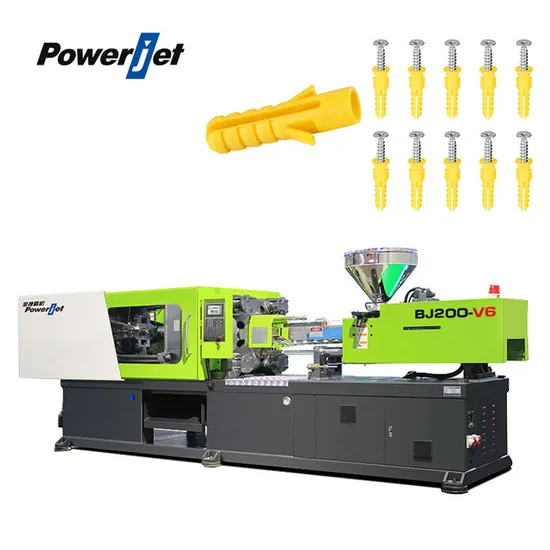

Powerjet Plastic Anchor Wall Bolt Plug Screw Plastic Cover Making Injection Molding Machine

Product Description

Products Description
CLAMPING UNIT
Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable.T-slot platen, convenient and fast mould change.
S6 Servo motor
With the adoption of servo control system, the injection pressure & speed 15 under closed loop controlled, and the stability and repeatability can be achieved.
V6 Variable Pump
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.
Comparing with the hydraulic machine, S6 series can save more 50% of the power. Comparing with full electrical machine, energy saving is more obviously seen during pressure hold & cooling stage.
Imported top grade hydraulic components
High precision oil filter and full flow bypass oil filter
Screw is driven by low speed & big torque hydraulic motor
Finite element analysis is used on the structure of mould plates So that the structure of mould plate
is more logical,stronger and higher fatigue resistance.
Automatic dosing lubrication system guarantees mould clamping mechanism to be more stable and reliable.

High precision electric meter is used to control position. The control precision is +0.1mm.
Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machine above BJ400 is equipped with hydraulic safety device. )

Wear resistant hard chromium plated tie bar is featured with high-tensile and high strength.
Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.
Product Paramenters

DESCRIPTION			UNIT	BJ200-V6/S6
CLAMPING UNIT	Clamping force	KN	2000
		Opening stroke	mm	490
		Max.datlight	mm	1040
		Platen size	mm	775*755
		Space between bars	mm	510*510
		Max.mold height	mm	550
		Min.mold height	mm	230
		Ejector stroke	mm	140
		Ejector force	KN	65
INJECTION UNIT	Screw diameter	mm	62
		Screw L/D Ratio	L/D	19.9
		Injection Pressure	MPa	180
		Shot volume	cm3	520
		Screw stroke	mm	245
		Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	18.5/21.8
		Heater power	kW	11.5

Why Choose Us

VR

Powerjet has become the booming power in the professional plastic machinery industry.
Since founded in 2000, Powerjet has worked with customers all along. Focusing on every customer need.
Using "innovation plus exemplary case". surpassing customers needs to realize the win-win cooperation. Its equipment has enjoyed a good reputation both at home and abroad. With the technological accumulation for 20 years. The world's top technological team has been established. Being market -oriented to constantly innovated and upgrade products, devoting to reduce customers' operating costs, providing the high-quality, innovative and optimal solution of plastics manufacture.

POWERJET is a high and new technology enterprise of injection molding machine and blow molding machine.
POWERJET PLASTIC MACHINERY co., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters. Advanced equipments like CNC imported from Mitsubishi, OKUMA, DOOSAN are introduced, POWERJET is a high and new technology enterprise of R &D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine.

To ensure the timely product delivery with the extremely fast production cycle. And ensure the qualified product. We integrate the craftsmanship spirit into each detail. Passing the international ISO and CE certificates and Korean KCS certificate. To freatly ensure the low energy consumption, high precision and reliability of Powerjet products.
SALES AND SERVICE NETWORK
We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
