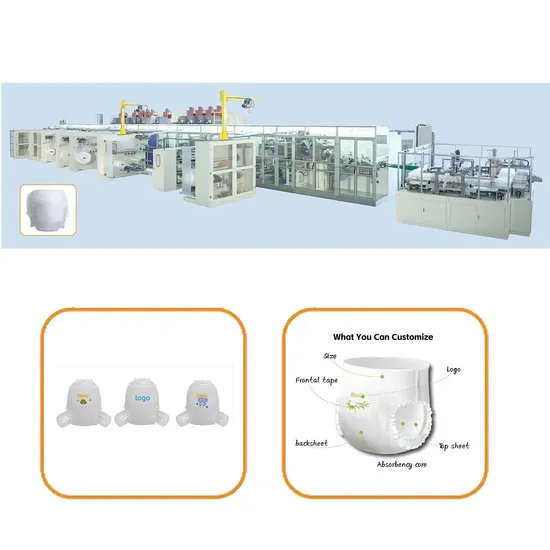

Full Servo System Automatic Baby Diaper Making Machine Production Line

Product Description

MACHINE DETAILS
The size of the full servo H-shape pull up baby diaper machine production line is 32m*8.5m*5m(based on the product provided by the client) and the machine weight is 90 tons approximately. The machine is equipped with servo control and smart system configuration, including a program system, tension system, driven system, packaging system, safety system, and web guiding system. The machine has high production capacity, can work continuously, with few interruptions, working speed of 600 pieces/min, which can produce a large number of baby pants in a short time. The uncoiling is stable during splicing, and the splicing can be automatically spliced or the button splicing can be controlled. The splicing speed can be set separately on the operation screen. The roll diameter of the raw material splicing type can be accurately adjusted to save raw materials.

Design Speed	600pcs/min
Stable Work Speed	500-550pcs/min
Power Supply	380V±5%,50HZ(3 phase,4lines,ground-in)
Installation	345KW(excluding air compressor,glue machine)
Power Used	550KW
Air Compressor	0.6-0.8Mpa
Product weight Tolerance	±5
Qualified Rate	≥97%(excluding glue,splice,raw jointer defectives)
Efficiency	≥85%
Machine Size(L*W*H)	32m*8.5m*5m
Working Size(L*W*H)	35m*13m*7m
Machine Weight	90Tons
Machine Color	Rich White(can be designed as customer's demand)
Machine Direction	Face the machine from left to right (can be designed as customer's demand)

The baby's skin is more delicate than that of adults, and the quality of the raw materials as well as the rationality of the diaper's product structure are very high. The use of high-quality raw materials and reasonable product structure of this full servo H-shape pull up baby diaper machine production line can take care of the baby's delicate skin and keep it comfortable and dry all day long. The product structure upper&lower tissue (or airlaid), cotton core(mixed with SAP), ADL, PE film, Front tape, Topsheet hydrophilic Leg cuff hydrophobic nonwoven, "S" cut side, Waistband online. It is capable of producing four sizes of baby diapers (M/L/XL/XXL) and can also be customized to produce various types of baby diapers using a convenient and quick full servo drive digital number change system, according to the customer's product size design.
We have factories and export companies, and the factory has 16 production lines, specializing in the production of baby diaper machines, adult diaper machines, sanitary napkin machines, etc. We can produce 6 machine production lines every month, which are produced following strict machine safety and quality standards, and the quality of the machines is guaranteed.
Welcome to choose us and please feel free to contact us at your earliest convenience.
MACHINE FEATURES

MACHINE PRODUCTION WORKSHOP

FINISHED PRODUCTS
BABY PULL UP DIAPER
OUR ADVANTAGES

---
