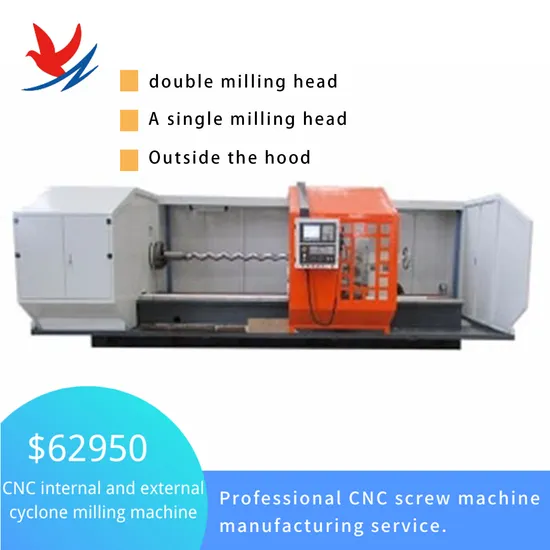

Kangnuo Internal External Thread Milling Cutting Processing Machine for Screw Pump

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>>>>>> Product Description
Kangnuo Internal Outernal Thread Milling Cutting Processing Machine
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
PRODUCT SPECIFICATIONS Configuration

1.Working area: 2000*3000*200mm
2.Vacuum table+T-solts (optional :T-solt table ) 3.Automatic loading and unloading tables
4.Italian HSD 9.5KW(12HP) Electrospindle 5.Taiwan Delta 11kw inverter
6.Taiwan Syntec control system 60w-e
7.Auto labeling machine+taiwan syntec control system
8.Japan Yaskawa servo motor and drivers system 850w with reducers

Model	Unit	CNC Whirling Machine
Max. rotation diameter over bed	mm	Φ500
Max. rotation diameter over pallet	mm	Φ300
Max. workpiece length	mm	750/1000
Lathe bed width	mm	400
Main transmission form		Independent spindle
Speed mode		Frequency steplessspeed
Spindle speed range	r/min	150-2000
Spindle head form		8-D
Spindle bore	mm	Φ82
Spindle centering axial taper		1:4
Spindle taper		1:20
Chuck diameter	mm	Φ250
Main motor power	kw	7.5
Turret maximum stroke	mm	X: 320 Z: 1020
Fast-moving feed	mm/min	X: 6000 Z: 8000
Positioning accuracy	mm	X: 0.01 Z: 0.015
Dia. of tailstock quill	mm	Φ75
Tailstock quill stroke	mm	180
Taper of tailstock quill		MT5
Repeat positioning accuracy	mm	0.008
Section of turning tool	mm	25x25
Size (LxWxH)	mm	3200x1600x1700
Net weight	kg	3500

PRODUCT CONFIGURATION

A2-6 4500 rpm spindle

GSK Control system

8-station servo hydraulic tool

Hydraulic chuck	Ball screw and line track	A convex and a flat tailstock design

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design Other Optional configuration

SYNTEC 22MA

FANUC

SIEMENS

HNC808DM

Hot Sales Recommend Products

No.	Product Name	Specifiations	Stock Qty	Stock price
1	Kangnuo Nxk350 Milling CNC Machine CNC Thread Whirling Machine	3000-8000mm	2	<view more>>>
2	Kangnuo Crm-260 CNC Shaping Grinding Machine	2000-3000mm	1	<view more>>>
3	Kangnuo Lgm140-2000 5 Axis CNC Spiral Rotor Grinder CNC Grinding Machine	1500-5000mm	3	<view more>>>
4	Kangnuo Lgx320-2000 CNC Spiral Rotor 5 Axis Linkage Milling Machine	2000-6000mm	2	<view more>>>
5	Kangnuo CNC Machine Design 3 Axis Screw Milling Machine	1000-10000mm	5	<view more>>>
6	Kangnuo CNC Special Roots Pump Rotor Milling Machine	3000-6000mm	6	<view more>>>
7	Kangnuo Lgxm350 CNC Spline Milling Grinding Machine	1000-4000mm	2	<view more>>>
8	Kangnuo Internal Outernal Thread Milling Cutting Processing Machine	1000-9000mm	10	<view more>>>
9	2022 5 Axis Kangnuo Ground Marble Plane CNC Camshaft Milling Grinding Machine	1000-7000mm	5	<view more>>>
10	2022 Kangnuo Stock Turning Milling Compressor Rotors 4 Axis T-Shape Bed CNC Milling Machine	1000-10000mm	20	<view more>>>
11	2022 Kangnuo Stock 5000mm Screw Milling Machine for Extrusion Industry	2000-10000mm	14	<view more>>>
12	2022 Kangnuo Stock 2000mm screw processing 100 diameter small screw milling machine for Precision laboratory granulator	1000-4000mm	3	<view more>>>
13	2022 Kangnuo Stock CNC Lxck350-4000 1000mm Bed Width Four Rails Screw Milling Machine Screw Milling Machine	2000-8000mm	7	<view more>>>

Assembly Process and Quality Control

Each contact surface of the workpiece is manually scraped to ensure the precision of the machine.	Line guide rail installation, using code meter accuracy test.	Installation details of inclined track
Screw installation process	Screw installation process	Electrical system configuration box

lectrical system configuration box


Company Profile and Picture
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province, the company is located only three kilometers away from the Nanpi exit of Beijing-Shanghai high-way, the traffic is very convenient. The company set r & D, design, production, sales, service in one, not only has a high-quality staff, but also has a strong product research and development team, after r & D improvement, our company now has a series of special CNC machine tools for processing spiral workpiece.Machine stable performance, high technology content, and a number of well-known enterprises to maintain long-term cooperation.
CERTIFICATIONS
CE , SGS, ****** High-quality Supplier and Made-In-China Gold Supplier.
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine,Turning Milling Machines .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
