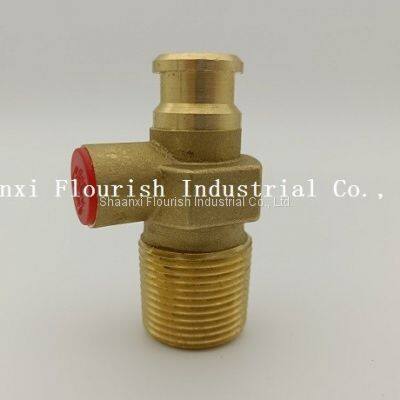

20MM Outlet LPG Gas Brass Self Closing Cylinder Valvea

Product Details

Product Description

Product Description
Material:Structure::Media:Temperature Of Media:High Light:

Brass	Angle
Gas	Normal Temperature
Brass Self Closing Cylinder Valve, LPG Self Closing Cylinder Valve, 20MM Self Closing Cylinder Valve

LPG brass gas self-closing cylinder valve / safety valve/ export to Africa

inlet thread	3/4-14NGT
Outlet Connection	Φ20
Working temperature	-35°C---+60°C
Safety relief pressure	2.6-2.9Mpa

The valve device is mainly used for gas regulation and discharge of gas storage tanks.When in use, first turn on the main switch of the cylinder, and then turn the low pressure gauge pressure adjustment screw clockwise to compress the main spring and drive the membrane, spring pad and ejector rod to open the valve. In this way, the imported high-pressure gas enters the low-pressure chamber from the high-pressure chamber after throttling and decompression, and then leads to the working system through the outlet. Rotate the adjusting screw to change the opening height of the valve, thereby adjusting the gas throughput and reaching the required pressure value.

---
