2400-2500MHz WiFi BT Internal Antenna 2.4GHz Flex PCB Antena

Product Details

Product Description

Product Description

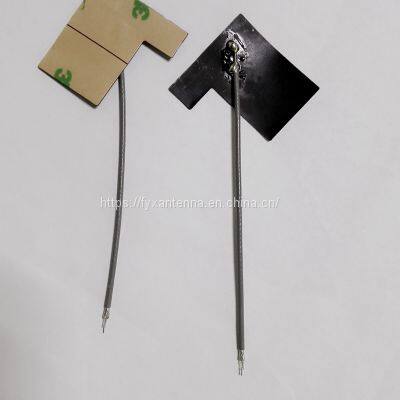

2400-2500MHz WiFi BT Internal Antenna 2.4GHz Flex PCB Antena
Support 802.11 b/g/n/ac;
Application: wifi module, bluetooth module, wireless module...
Electrical Specifications
Frequency Range: 2400-2500 MHz
VSWR:<2.0
Gain: 2 dBi
Impedance: 50 Ω
Polarization: Vertical
Mechanical Specifications
Connector: IPEX/U.FL or OPEN (directly solder)
Antenna Dimension: 24x23x0.2 mm
Cable Type: RF1.13 gray
Cable Length: 100 mm or customized
Operation Temperature: -40 ~ +70 ℃
