CH4 Hydrate Test Formation High Temperature High Pressure Reactor

Product Description

Product Parameters

Process visulization
Smart Visual images remove the mysterious veil covering the process information and make vast data alive;you can touch the changes and perceive the presence; you can obtain more information from complicated reaction process.Process data is visual.
Basic characteristics of Sapphire crystal

Crystal structure	Hexagonal crystal
Cell parameters	a=4.785A,c=12.991A
Melting point	2045ºC
Density	3.98g/cm3
Moh's hardness	9
Coefficient of thermal expansion	5.8×10-6/K
Specific heat	0.418W.s/g/k
Thermal conductivity	25.12W/m/k(@100ºC)
Index of refraction	no =1.768 ne =1.760
dn/dt	13x10-6/K(@633nm)
Transmittance feature	T≈80%(0.3~5μm)
Dielectric constant	11.5(//c),9.3(⊥c)

Company Profile
Our Advantages

Packaging & Shipping

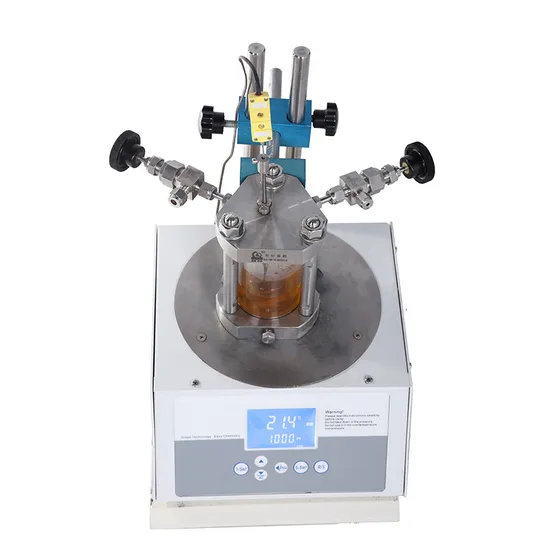

Sapphire mini-sized high-pressure reactor is resistant to pressure and visual;used for visual reaction research,sampling analysis,multiphase phase behavior observation, spray observation for supercritical particles preparation,re- search of thermodynamic properties,long-time dissolution process,etc.Also,we can design,customize and process reactors according to experimental requirements of users.

Series Sapphire Micro-Reactors System Specifications
Model Number	S10	S25	S50	S100
Sizes,ml	10	25	50	100
Maximum Pressure(WAWP)	10MPa(1500psi)
Maximum Temperature	150ºC
Constant temp Accuracy	±1ºC
Reactor Mounting	Bench Top
Rotation Speed	0-1200rpm
Electrical Supply
Volts,AC	100 or 220V,50Hz
Motor power(W)	50	50	80	120
Reactor Dimensions
Width,mm	250
Height,mm	250
Depth,mm	455
Weight,kg	15	16	18	20
Materials of Construction	10ML-100ML Sapphire&316L Stainless,Steel,AlloyTA2 Alloy C-276,Nickel.
Other options available,Please call formore information.

FAQ

Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all SENLONG products are supplied with a warranty of 12 Months from the date of shipment.
Q5:Can we visit your factory?
A5: Welcome visit our factory.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)

---
