300X1200 Super Span Prestressed Hollow Core Slab Extruder

Product Description

Product Description

Brief Introduction

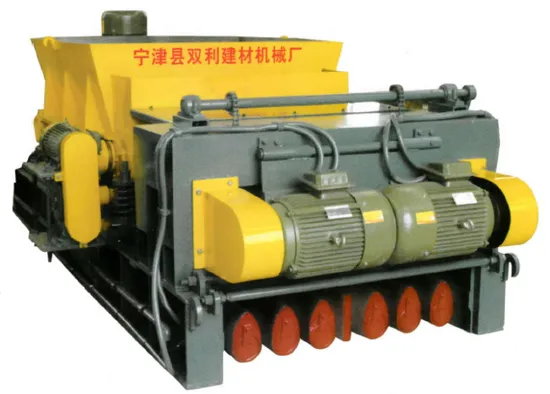

The Hollow core slab forming machine works on the concrete platform. Driven by the motor and transmitted throught the speed reducer. The movement of the slipper block pushed the loosen materials to the forming container from the hopper. With the continuous working of the vibrate plates. The material condensed by pushing and discharging of air. Press the concrete be hard and strong. The concrete be shape to smooth slabs. At the same time, the machine move forward to produce the long panel because the reactive force overcomes the frictional resistance. The slab can be cut to different lengths from 4.2m to 18m. Finshed products with strong load capacity, smooth surface and good flatness. Due to the strong adaptability for field, low requirement to the supporting facilities, low cost of investment, our hollow slab forming machine has a broad market prospect.

Technical Details Parameter of concrete slab making machine

Thickness* Width	Total Power (KW)	productivity (m/min)	Max Length (m)	Maximum load capacity (kn/m2)	Steel Diameter	Number of steel used	Holes
100*600	8	1.2-1.4	5.1	8.11	7mm	5	6
120*600	8.5	1.2-1.4	6	8.86	7mm	6	5
150*600	10.5	1.2-1.4	7.5	10.24	9.5mm	5	4
180*600	10.5	1.2-1.4	9	16.16	12.7mm	4	3
100*900	10	1.2-1.4	5.1	9.76	7mm	10	10
120*900	14	1.2-1.4	6	8.86	7mm	9	8
150*900	15	1.2-1.4	7.5	10.24	9.5mm	10	6
180*900	15	1.2-1.4	9	16.16	12.7mm	9	5
200*900	15	1.2	10.2	13.22	12.7mm	7	6 & peach
120*120	15	1.2-1.4	6	8.86	7mm	12	11
150*1200	15	1.2-1.4	7.5	10.24	9.5mm	14	13
180*1200	19	1-1.2	9	16.16	12.7mm	10	11
200*1200	22	1-1.2	10.2	13.22	12.7mm	10	8
250*900	18.5	1.2	12.6	11.1	12.7mm	7	6 & peach
300*900	22	1.2	15	10.83	12.7mm	8	5 & peach
220*1200	24	1-1.2	10.5	10.9	12.7mm	9	8
250*1200	26	1-1.2	12.6	11.1	12.7mm	10	8
300*1200	33	1-1.2	15	10.83	12.7mm	12	6
We can design and manufacture specific model according to customers' specific requirement.

Production Process Production flow:

The machine works on the concrete platform, using pre-stressed steel wires as guidance, electric motor as power to push the concrete into concrete slabs while walking along the steel wires. The continuously working of vibration plate will highly classify the concrete. Meanwhile, the reaction of pushing materials by slider will move the equipment go along with the steel wire overcoming the frictional resistance. After nearly 48-hour maintenance, it can be cut into concrete slabs for use.

Our Services
1. Quick & fast spare parts
2. 6 months warranty for the equipment, low cost maintenance.
3. Free training for end users at local plant
4. Customizable with sizes and colors, OEM available
Company Information
Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province, China.
1. Our products have a particularly good reputation in more than a dozen provinces and cities nationwide. The export has been increasing recent years, including India, Russia, Myanmar, Uzbekistan, etc.
2. We provide the stability of product quality, timely delivery, excellent after sale service, followed by customers' trust, wide market and good reputation.

---
