XL6436 Arm travel 550mm RAM Milling Machine

US$3,988.00-15,898.00 1 Set (MOQ)

Basic Info.

Model NO.

XL6436

Type

Tool Milling Machine

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table feed(X/Y/Z)

30-750/20-500/15-375mm/min

Spindle taper

7:24 ISO50(H) 7:24 ISO50(V)

Arm travel

550mm

Distance between spindle nose and table

175-625mm

Distance between horizontal nose and tab

0-450mm

Distance between spindle axis and arem s

200mm

T-slots(No./width/pitch)

3/18/80mm

Main motor power

5.5(H)4(V)kw

3 to feed AC servo motor torque

15N.m

Transport Package

Standard Export Packaging

Specification

2750/2800kg

Trademark

MFGSP

Origin

China

Production Capacity

2000sets/Year

Packaging & Delivery

Package Size

225.00cm * 210.00cm * 200.00cm

Package Gross Weight

2750.000kg

Product Description

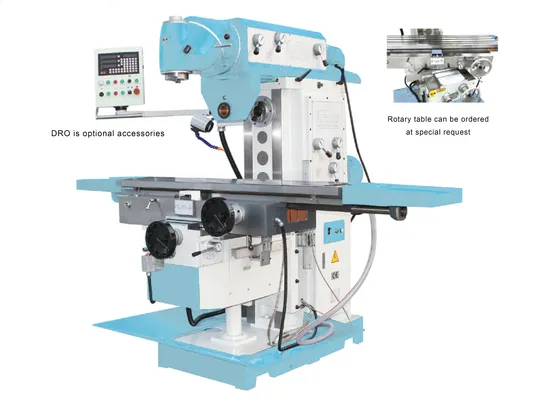

RAM Milling Machine
DRO is optional accessories
Rotary table can be ordered at special request
Machine with automatic feed controlled one servo motor in XYZ-axis
Use one handle to control forward and reverse movement in XYZ-axis

Specification	Unit	XL6436C	XL6436CL
Table size	mm	1325x360	1600x360
Table travel(X/Y/Z)	mm	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750/20-500/15-375
Spindle taper		7:24 ISO50(H) 7:24 ISO50(V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	175-625
Distance between horizontal nose and table surface	mm	0-450
Distance between spindle axis and arem surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750(V) 12 steps 60-1800(H)
T-slots(No./width/pitch)	mm	3/18/80
Main motor power	kw	5.5(H)4(V)
3 to feed AC servo motor torque	N.m	15
Overall size	mm	2245x2100x2000	2520x2100x2000
Net weight	kg	2750	2800
