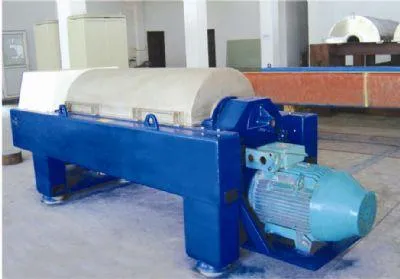

Sludge Dewatering Decanter Centrifuge, High Speed Centrifuge

Product Description

Introduce
Decanter Centrifuge Automatic Horizontal Decanter Centrifuges For Coagulated Blood
Main advantages
1. Continuous feeding, separating and discharging
2. Low energy consumption
3. Simple operation and easy maintenance
4. CE, ISO, TUV
Properties
Application: water sludge separation
Motor brand: ABB,SIEMENS
Bearing:S-K-F
Length-dia-ration: more than 4
Conveyor flight: lining or tiled
Control PLC system: with or without
Basic principles
For the auto decanter centrifuges stable performance sludge dewatering separator, the continuous feeding, separating and discharging can be realized as it rotates at its full speed.
It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.
Structure
1. Feeding pipe 2. Discharge screw 3. Drum 4. Casing 5. Differential mechanism
Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum;
under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine.
The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.
Structural Diagram

Technical Paramter:

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

More parts show of the decanter centrifuge:
Productive process
Workshop

Our services As Follows:
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
