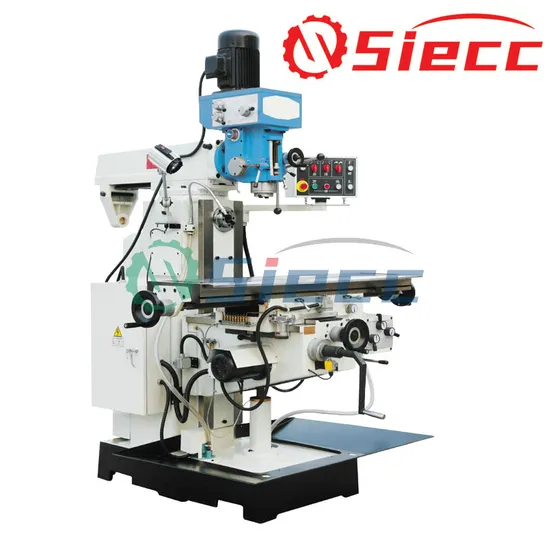

X6336 Hot Sale High Quality Universal Turret Milling Machine

US$4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6336
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X6336
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year

Product Description

universal turret milling machine X6336
1.Rotary table can be ordered at special request
2.XYZ 3-axis auto-feed and fast feed by servo motor
3.Taiwan 5hp /7.5HP step/variable turret milling head
Specifications
Unit
X6336
Table size
mm
1600×360
Table travel (X/Y/Z)
mm
1300/320/450
Table feed. (X/Y/Z)
mm/min
30-750/20-500/15-375
Table rapid speed (X/Y/Z)
mm/min
1200/800/600
Spindle taper
7:24 IS050 (H) 7:24 IS040 (V)
Stroke of spindle quill
mm
127 (V)
Distance between spindle nose and table surface
mm
200-650
Distance between horizontal spindle center line and table surface
mm
20-470
Distance between horizontal spindle center line and arm surface
mm
245
Spindle speed range
12steps 60-1800 (H) 16steps 65~4660 (V)
T-slots(NO./width/pitch) mm 3/18/80
Arm travel mm 550
Main motor power
Kw
5.5 (H) 3.7 (V)
Torque of X/Y/Z axis AC servo motor
N.m
10
Overall size
mm
2520×2100×2500
Net weight
kg
2850
