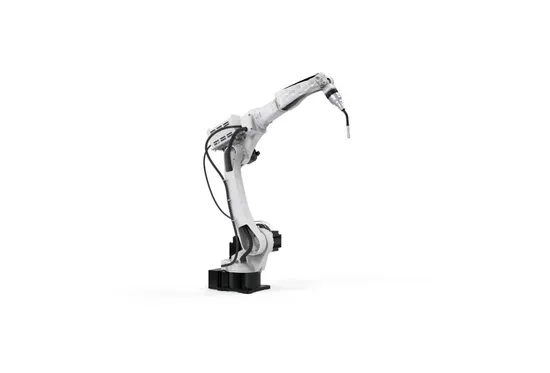

China Factor 500A Power MIG Welding Robot 6 Axis Can Support Chinese English Russian Language

Product Description

Product Description

FY-RW500 welding robot is an industrial robot engaged in welding work. It is a multipurpose, reprogrammable automatic control operator with more than three programmable axes for industrial automation.
Stabilize and improve the welding quality, and can reflect the welding quality in the form of numerical values; improve labor productivity; improve the labor intensity of workers, and can work in harmful environments; reduce the requirements for workers' operating skills; shorten the preparation for product modification and replacement cycle and reduce corresponding equipment investment.
Product Parameters

Model	FY-RW500
6 axis welding robot	Degrees of freedom: 6
	Specified load: 10kgs
	Arm span: 1400mm
	J3 axis additional load: 12kgs
	Weight: 160kgs
	Repeatable positioning accuracy: ±0.05mm
	Voltage: 3 phase 380V
Industrial robot control system	User storage space: Industrial grade SD CARD/256MB
	Controller: OP panel/function selection button
	Control axis: 6+3 axis
	Control servo:EtherCAT bus servo
	Operating mode:Teaching, online, remote
	Programmatically:Online teaching, process programming
	Motor function:Point to point, straight line, arc
Digital pulse water-cooled welding machine (500RP Plus)	Rated input voltage:3 phase 380V±10% 50hz
	Rated input capacity: 24KVA
	Rated input current: 38A
	Rated output voltage: 39V
	Rated load duration: 100%
	Output no-load voltage: 106V
	Welding wire diameter: 0.8mm,1.0mm,1.2mm,1.6 mm
	Gas flow: 15-20L/min

Detailed Photos
High performance servo for robot
Calibration of the calibrator before leaving factory
RV+harmonic reducer
120 hours of continuous testing before leaving factory
1. There are three welding methods: single pulse, fast pulse and constant voltage. Can weld carbon steel and stainless steel.
2. Fully digital grating feedback motor control makes wire feeding more precise and stable.
3.Can store 100 sets of welding parameters, and the robot can call them at any time.
4.With contact sensing function, it is convenient for robots to complete positioning operations, and comes standard with high-voltage positioning.
5.Welding parameters can be transmitted to the robot from time to time to facilitate the robot to complete the arc tracking function.
6.The operation interface is simple and the unified adjustment method is easy to master.
7.The molten droplets are transferred from pulse to drop, and there is no spatter during welding.

High intensity interference, dust, heat dissipation isolation protection.
Scalable multi-axis control.
Based on application needs,provide integrated customization of engineering electrical integration.

Company Profile

Shandong Farin International Trade co., ltd/Shandong Farin Intelligent Machinery Co., Ltd.(Hereinafter referred to as "Farin CNC Machine"). Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Anlge steel making machine, fiber laser cutting machine,laser robot, ultra-high power 10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission towers, telecommunications tower, steel structures, central air-conditioners, automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market, Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America, Africa and Middle East. And get high appreciated from all over the world. Packaging & Shipping

The machine will be packed in wooden boxes or vacuum packed. The packaging of the goods should be moisture-proof, rust-proof, moisture-proof, corrosion-proof and shock-proof, and should be suitable for sea transportation/multiple transportation.

After Sales Service

1. Warranty. --Farin Laser provides a 1-year free warranty and provides customers with timely solutions. 2. Follow up. --Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving. 3. Online services. -Farin Laser will respond to any questions from customers within 1 hour during working hours, 4. Overseas services. --Farin Laser can provide overseas machinery installation, training, maintenance and other services.

---
