Low Emission Stainless Steel White Prawn/Grouper Ras Equipment Microfilter

Product Description

Product Description
Principle

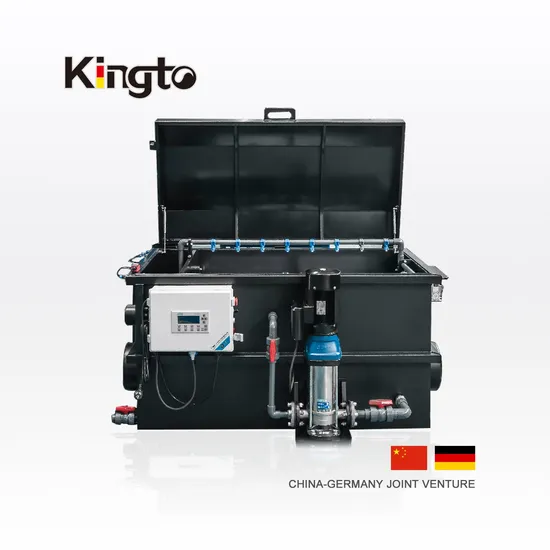

The automatic drum filter(PEHD series), is made in China with advanced German technology, is a low-energy mechanical filter. Its principle is that after polluted water flows into the drum, suspendedsolid larger than filter perforations in the water will be retained in the drum by the micro mesh and discharged by the sewage pipe. The polluted water flowing through the micro mesh is purified and then flows out of this micro-filter system.Advantage1. The tank and cover are made of corrosion resistant and UV resistant German PEHD plate, with long life.
2. Built-in bypass, no need to interrupt water circulation in case of emergency, no need to install an external bypass pipeline.
3. The gear is made of corrosion resistant and high hardness material with low maintenance.
4. Siemens PLC or Omron timer, automatic flushing.
5. Suitable for aquaculture, landscape fish pond, aquarium engineering, fresh water and seawater can be usedTechnical dataFiltration: 20μ-90μ(as standard)
Filter surface: Max. 5.4m2
Max capacity:up to 560m3/h(at 90μ,SS≤10mg/l)Scope of applicationSuitable for circulating aquiculture system (fresh water and seawate)randscape water treatment system and industrial wastewater treatment system
Product Parameters

Product model	Flow (m³/h)	Overall size (mm)	Weight (kg)	Backwash pump power (kw)	Reducer power(kw)
HDF-20	32	990*970*802	83	0.75	0.15
HDF40	50	1085*1065*842	111	0.75	0.15
HDF60	90	1306*1222*860	161	0.75	0.15
HDF100	115	1700*1080*860	182	1.1	0.15
HDF150	150	1892*1080*860	202	1.1	0.15
HDF200	225	2122*1313*1075	300	1.1	0.15

Solution

Main Products


Company Profile
Why Choose Us
Packaging & Shipping


FAQ
Q: What are your factory main products?
A: we are fous on aquaculture equipment produce.The main products are Automatic Drum Filter,Automatic Bait-throwing Machine,UV Sterilizing Device,Fish Tank and Other RAS Devices.
We can supply the the overall solution of RAS fish farm, including project consulting, design, construction, RAS equipment and maintenance services.
Q: What is your product warranty ?
A: The warranty is 12 months while the lifetime is 10-15 years under good maintenance.It is durable and anti-corrosion.
Q: How to get a accurate quote?
A:Please provide the following informations
Fresh water or sea water.
Modle or Filtration & Filtration capacity.
Port of the project.
Q: What is the payment term ?
A: Our payment is T/T , 60% deposit, 40% balance payment before shipment.
Q: We haven't imported before, can you ship the goods to our warehouse?
A: Yes. Although our normal trade term is EXW, FOB, CIF, we can also arrange logistics to your warehouse.
Q: How to assemble the equipment once we received it?
A: The CAD install instruction, assembly procedure and project case will be provided.,Of course our skilled installation engineers
would go to your country and install the equipment if needed.
Q: What is your MOQ?
A: Normally, our MOQ is 1 set.

---
