Single-Mode Aerial Figure 8 FTTH Cable Fibra Optica Central Loose Tube Fiber Cable Gyxtc8s

Product Description

GYXTC8S Aerial Figure 8 Central Loose Tube Outdoor Armored Optical Fiber Cable
The 2~12 fibers are positioned in central PBT loose tube filled with tube gel. The cable core is filled with water-blocking compound and armored with corrugated steel tape(CST). Stranded steel wires support as the messenger. Finally, a figure-8 PE outer jacket is extruded.
Features:
• Central Loose Tube structure
• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Small size, light weight and soft, easy for installation
• Hydrolysis resistant loose tube
• Tube gel ensures critical protection of fiber
• Corrugated steel tape(CST) enhancing moisture-proof
Applications:
Self-support Aerial Installation, Aerial Access Cable, FTTH Drop Cable

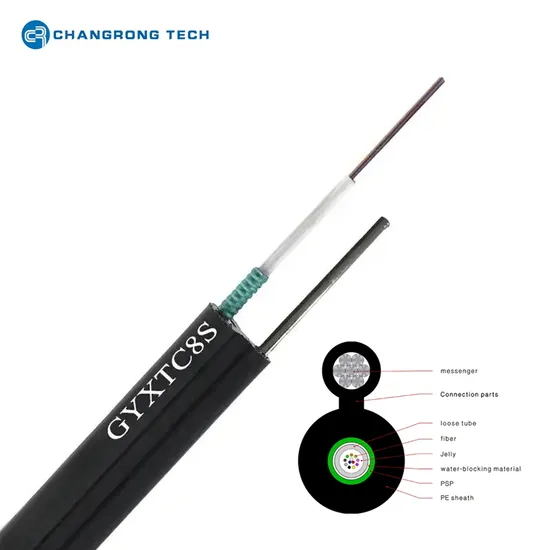

Cross Section Product Parameters

Item		Value
Fiber Counts		4
Fiber Counts/ Tube		4
Tubes		1
Tube Material		PBT
Tube Filling		Thixotropic Jelly
Fiber Identification		Blue Orange Green Brown
OD of Tube		2.6±0.1 mm
Thickness of Tube		0.35±0.05 mm
Color of Tube		Natural
Water Blocking Material		Filling compound
Armor		Corrugated Steel Tape
Cable	Thickness of sheath	Nominal 1.5 mm MDPE
	OD	6.6mm±0.5mm
Web	Width	1.5±0.5mm
	Height	1.5±0.5mm
Messenger	Material	Galvanised Stranded Steel Wire
	Diameter	1.0mm
	Number	7
	Thickness of sheath	Nominal 1.0mm MDPE
	OD	5.0±0.5mm
Height		13.1±1.0 mm
Weight (±10kg)		110 kg/km

Detailed Photos
Certifications ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Packaging & Shipping Drum Packing:
Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total area 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified manufacturer.Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, an annual production capacity of 15 million Fiber Kilometers, own lab with advanced equipment and CNAS certification, Changrong Tech is devoted to achieving the best solutions for customers.
Workshop View
Welcome to contact for more information and quotation!

---
