High Quality Metal Xq6226 XL6230 Universal Vertical and Horizontal Turret Milling

Product Description

Product Description

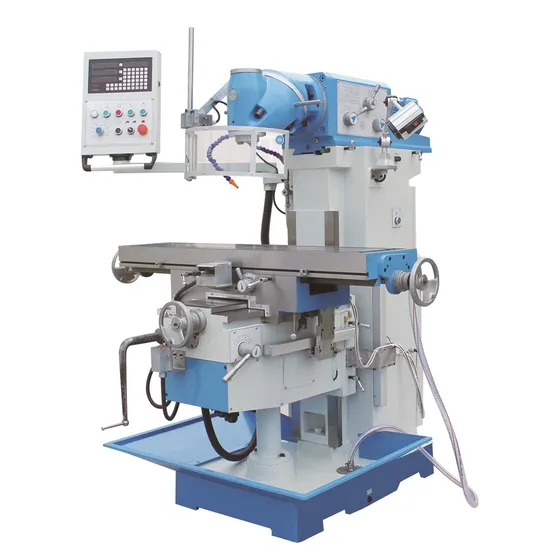

High quality metal XQ6226 XL6230 Universal Vertical and Horizontal Turret Milling

1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance


Fast delivery , welcome your inquiry!!!
Detailed Photos
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
1. Universal swivel head, can swivel 360 degree
2. ISO50 vertical spindle taper 3KW motor

1. X Y Z 3-axis automatic feed and rapid feed by servo motor, easy operating and low trouble rate.
2. It`s our patented product, started to produce in 2007.

1. Rotary table 45 degree is optional
2. The lifting part with grinding surface, metal texture, and there is no defect in the casting.

1. We pay attention to every details.
2. All the oil plugs are made by stainless
3. All the oil window made by copper

Product Parameters

Specifications	Unit	XL6230	XL6230A	XL6230B	XL6230C
Table size	mm	1270*300	1370*300	1270*300	1370*300
T-slots(NO./width/pitch)	mm	3*14*80
Max table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40
Distance between spindle nose and table surface	mm	100-500
Spindle speed range	r.p.m	11 steps 45-1660
Max swivel angle of milling head	-	360°
Table feed(X/Y/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	3
Torque of X/Y/Z axis AC servo motor	Nm	10
Overall size	mm	1730*1760*1700	1830*1760*1700	1730*1760*1700		1830*1760*1700

Company Profile
Shandong XILI Machine Tool Co.,LTD (Shandong Yourong Machine Tool Co.,LTD.) was founded in 2008 and Tengzhou XILI Machine Tool Co.,LTD.was founded in 1999.We are focus on milling machine manufacturer for more than 20 years. Our main products are conventional milling machine/CNC milling machine/machining center/CNC gantry milling machine. Our milling machine exports to Europe, Asia , America....around the world.We can also provide OEM manufacturing service for customers all over the world.
If you need any further information, feel free to contact us.

---
