Best Automatic Multi Head Stone Polishing Grinding Machine/Granite Line Polisher/ Polishing Marble Slab Processing Equipment Manufacturer

Product Description

Product Introduction

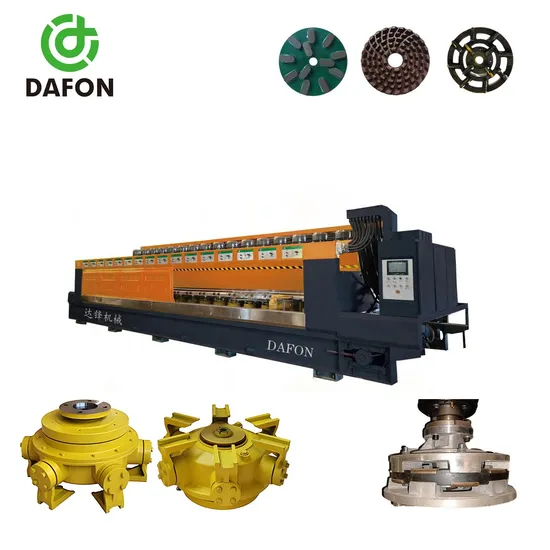

Dafon produces three styles of grinding polishing machines, resin grinding polishing machine line, fickert head grinding polishing machines, and Frankfurt head stone grinding polishing machines for polishing granite and marble. we also can customize the number of heads(8 heads to 24 heads), processing width, and length.
These machines are suitable for polishing Granite slabs or strips. Use the PLC system and liquid crystal display screen menu to offer intelligent control. Establish Auto-dodging function and shape memory function. allocation of the abrasive consumption equipment. which has high automation operation and low labor strength. Allocation of the flexibility of Resin polishing heads. Prominent improvement in the polishing efficiency and quality and greatly reduced abrasive consumption. Using the most advanced high-quality construction, and rational structure. high stability and efficiency and energy-saving operation. The power movement of polishing heads using the spread-allied set, improved slab flatness, reduced movement consumption, and enhanced the longer working life. We can do the machines according to the client's requirements, like the number of heads, processing width, and length.

Technique Description

Suitable for the surface polishing granite/marble
Using a PLC intelligent control system and through the LCD touch screen human-computer dialogue, to achieve intelligent control.
A grinding head with automatic collision avoidance and shape memory function, and is configured to abrasive wear alarm device, the machine has a high automation degree, and low labor intensity.
Allocation of special granite grinding head/marble elastic grinding, polishing, and polishing quality, and greatly reduced abrasive consumption.
Selection of sophisticated, reasonable structure, improving processing technology. finishing strong rigidity. Stable performance.
The grinding head, grinding head upper part, and key bearings are used in the central automatic lubrication system.
Grinding power transmission using joint belt teeth narrow V belt, greatly reducing the power loss and increasing the service lift.

Technical Data

Name	Unit	DFB-H8	DFB-H12	DFB-H16	DFB-H20	DFB-H24
Number of grinding heads	No.	8	12	16	20	24
Grinding head width	mm	300-1250	300-1250	300-1250	300-1250	300-1250
Grinding plate thickness	mm	10-60	10-60	10-60	10-60	10-60
Belt conveying speed	mm/min	0-3800	0-3800	0-3800	0-3800	0-3800
Motor Power	kw	7.5	7.5	7.5	7.5	7.5
total power	kw	78	108	135	168	198
Water Consumption	m³/h	10	16	20	23	25
Dimensions	mm	5560*2300*2300	6760*2300*2300	7960*2300*2300	9160*2300*2300	10360*2300*2300
weight	kg	9000	12000	15000	18000	21000

Important Components

Machine Details

Abrasive Combination

After Sales Service

We provide skilled and richly experienced technicians for installation and after-sales service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping

The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.

FAQ

Q: Can I become a distributor?A: Yes, we have special discounts for distributors.Q: What is your competitiveness?A: We can provide a one-stop purchasing service. Our machine has a good price with the best quality. Each machine has a long service life, high production capacity, and accuracy. Also, we could send an engineer to help the customer if the machine has problems.Q: When will you ship my order?A: For regular machines, we have standard models in stock, so we can ship them as soon as we receive your payment.
If we do not have it in stock, normally it takes 15-30 days to produce after receiving the deposit, it can be negotiated if the customer needs machines urgently.Q: How about the warranty period?A: 1 year.Q: What language does your machine have?A: All machines have both Chinese and English languages, We can also add Russian, Saudi, Polish, Korean, etc. according to your requirement.Q: How can you guarantee the production quality?A: We have a strict quality control system in our production process. All products must be double-checked during every manufacturing process. The requirements of customers and the quality of products will be fully guaranteed. We will send you machine testing videos before shipping.Q: After I bought the machines, how I can install and operate them?A: We can send an engineer to help you with machine installation and training, or we can send you foundation diagrams and instruction videos.Q: If I don't want your engineer, how can I install and operate the machine by myself?A: We can send you a machine foundation diagram and instruction videos for installation. We have machine manuals to teach you how to operate.

Our Company

The Dafon company has advanced mechanical processing equipment, standardized workshops, a strong technical force, an efficient research and development team, and rich experience in stone machinery production, which make the company continue to be at the forefront of stone machinery. Relying on the advantages of strong industrial clusters, the company provides customers with free one-stop solutions for the stone industry (granite), including mining planning guidance, technical consultation, technical output, equipment procurement, processing, construction guidance, etc. As long as you invest in the stone industry, we provide you with a series of professional services.
