Smtcl EDM Heavy CNC Lathe 8000mm HTC125800 Horizontal Flat Bed CNC Heavy Turning Machine Lathe Machine

Product Description

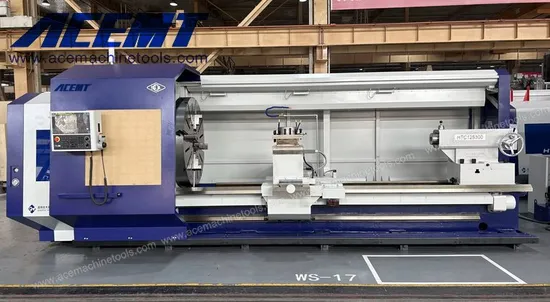

SMTCL SYMG HTC125800 Heavy Duty Horizontal CNC Lathe High rigidity, high strength, high load, high precision, high efficiency and high stability
HTCseries lathe is a large CNC horizontal lathe with high reliability and high precision, CNC two-axis connection. The series machine tool is based on digesting and absorbing CNC lathe technology at home and abroad, and integrates our many years of experience in producing CNC lathes to meet market demand and design and produce excellent products, with the advantages of similar products in the world.
Suitable for rolling stock, metallurgy, paper making, electric power, national key fields and other mechanical processing industries, cast iron, steel and non-ferrous metal all kinds of outer curve surface, inner hole, thread, end face, grooving and other rough, fine turning. In addition to the function of universal CNC lathe, it is also equipped with a variety of functional parts for users to choose, and cooperate with the host to achieve a multi-process processing, that is, to achieve functional integration of one machine, multi-process process compound. Product Details
headstock:
Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable
Z-axis drive:
SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above
Center rest:
Various specifications closed center frame (can be equipped with rollers)
Tool rest:
Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability Bed saddle, skateboard:
Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission Control console:
Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system
Tailstock:
Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock
PRODUCT SPECIFICATIONS

Items		Unit	HTC125800
Maximum swing diameter over bed		mm	1250
Maximum workpiece holding length (distance between centers)		mm	8100
Maximum cutting length		mm	8000
Maximum cutting diameter		mm	1250
Maximum swing diameter over cross slide		mm	850
Spindle nose type and code			A2-15
Spindle front end bore taper			Metric 140
Spindle bore diameter		mm	130
Hydraulic variable speed headstock
Spindle speed range		r/min	5-500
Maximum output torque of spindle		Nm	7500
Spindle speed steps			Hydraulicly 3steps, infinitely variable speeds at each step
Power of main motor		kW	22
Chuck
Diameter/type of chuck		mm	1000/manual four-claw
X-axis rapid traverse speed		m/min	6
Z-axis rapid traverse speed		m/min	5
X-axis travel		mm	650
Z-axis travel		mm	8000
Mechanical tailstock
Tailstock sleeve diameter		mm	160
Tailstock sleeve travel		mm	300
Tailstock sleeve taper			Mohs 6#
Tool post type			Vertical 4-position
Tool size		mm	40*40
Maximum load capacity
Disc workpieces		kg	1000
Shaft workpieces		kg	5000
Machining accuracy			IT6-IT7
Roundness of workpiece machined		mm	0.005
Consistency of machining diameter		mm	0.025/300
Planeness of workpiece machined		mm	0.02/300
Surface roughness of workpiece machined
Cylindrical surface			Ra l.6μm
Circular cambered surface Conical surface			Ra 3.2μm
Positioning accuracy
X-axis		mm	0.014
Z-axis		mm	0.065(Z axis standard grating ruler)
Repeated positioning accuracy
X-axis		mm	0.006
Z-axis		mm	0.016(Z axis standard grating ruler)
Center height
From bed		mm	625
From ground surface		mm	1275
Overall dimension (L* W * H)		mm	11850*2725*2450
Standard configuration: 1. CNC control system: Siemens 828D 2.Domestic 22kW frequency conversion main motor 3. Imported high-precision spindle bearings 4. Manual tail seat 5. Vertical four-station electric tool holder 6. Imported brand lead screw 7. φ1000 manual four-jaw chuck 8. Two axis automatic lubrication 9. Cooling device 10.The floor mat iron (technical foot hole configuration)		Selective configuration: 1. CNC system FANUC(two-axis motor with the system configuration) 2. Other specifications three or four jaw chuck 3. Heidenhain/Fager grating ruler 4. Axle parts bearing capacity 8 tons 5. Various specifications steady rest and roller 6. Siemens/FANUC main motor 7. Other specifications power tool holder 8. Semi-closed protection 9. Chain plate chip extractor 10. Various specifications boring tool base 11. Small spindle tailstock 12. Electric tailstock

---
