Mqf5160zxxd4 Garbage Truck with Detachable Carriage and Auxiliary Garbage Bin

Product Description

Our Advantages
Features

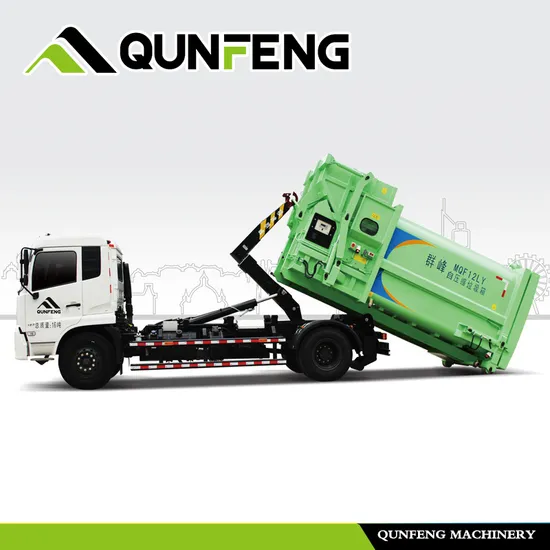

MQF5160ZXXD5/MQF5180ZXXD5/MQF5250ZXXD5 garbage truck with detachable carriage is used with garbage compression box, which let garbage directly transferred from source to disposal site, reducing transportation cost and avoiding secondary pollution. The equipment is suitable for those garbage concentration places such as urban, large factories, schools, squares and other densely populated.
Feature
Domestic advanced chassis and international advanced arm assembly, of which mature technology, stable and reliable working status.
Garbage bin can be apart from truck, one truck can work with multiple bins which lessen the vehicle's configuration, improve transport efficiency and reduce operation cost.
The coordinated garbage compression cabinet door could be opened and closed with the power from the vehicle itself, which is reliable and practical.
In the hydraulic system, a plurality of interlocking devices and explosion-proof valve to ensure that the cars working, loading and unloading process safety.
Hook arm system adopts slider type structure, the hook is easy to fit, the maintenance is simple and bin loading and unloading height limit is low.
Adopting roller to support truck and make it stable, when loading and unloading the cabinet, the oil cylinder will push roller down to the ground, which effectively prevent upwarp of truck and make operation moresecure.
Product Parameters

Model	MQF5160ZXXD5		MQF5180ZXXD5	MQF5250ZXXD5
Chassis Model	DFL1160BX1V		DFH1180BX1V	DFL1250A13
Engine Model/Power(kW)	ISD210 50/136			ISD245 50/180
Emission Standard	GB V
Dimensions ( L x W x H)(mm)	6525×2500×2970(3800) 7225×2500×2970(4500)			8355×2500×3070
Wheelbase(mm)	3800 , 4500			4350+1350
Loading Weight(kg)	8455(3800) 8105(4500)	10655(3800) 10455(4500)		13185
Weight(kg)	15800	18000		25000
Lifting Capacity(t)	12t(3800) 14t(4500)			20t
