Engraver and Cutting Machine A2-1325-PRO CNC Router for Furniture Industry

Product Description

Product Description

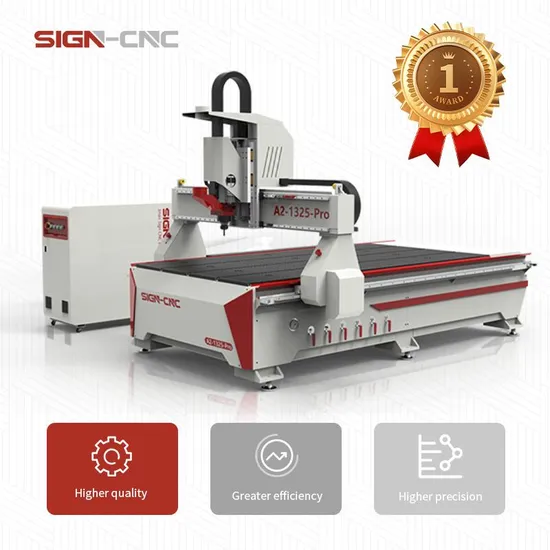

Engraver and Cutting Machine A2-1325-Pro CNC Router for Furniture Industry
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Technical Parameters

Model	A2-1325-Pro
X, Y Working size	1300*2500mm
Z feed Height	300mm
Table Surface	Aluminum profile T-slot table with PVC protection
X, Y Structure	Helical rack and high precision 25mm Square Guide Rail
Z Structure	High precision 25mm Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min

Max. Working Speed	20000mm/min
Spindle Power	HQD 9KW Air-cooled spindle
Spindle Speed	0-18000RPM
Drive Motors	AC servo motor and driver
Working Voltage	AC380V/50/60Hz
Command Language	G code
Control System	DSP B11
X,Y,Z repositioning Accuracy	±0.01mm

X,Y Resolution	<0.01mm
Software	Artcam with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Packaging & Shipping

---
