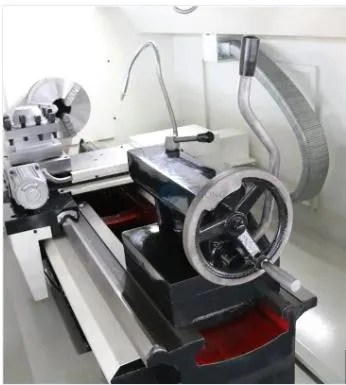

CK61125 series CNC lathe is an economical CNC machining lathe, which can be used for rough machining and finishing machining of mechanical parts. It is simple and reliable in structure, convenient in operation, economical and practical. The control system has comprehensive functions and can meet the needs of many industries. Especially suitable for automobile, machinery and other industries, rotary parts for efficient, high-volume, high-precision processing.
| ITEM | UNIT | CK61125 |
| Swing over bed | mm | 1350 |
| Max. cutting length | mm | 1500,2000,3000,4000,5000 |
| Max. cutting diameter | mm | 1250 |
| Max. tuming diameter on sliding plate | mm | 900 |
| Type and code of spindle end | | A2-11 |
| Diameter of spindle hole | mm | 105 |
| Spindle speed range | rpm | 17~1000(Manual) |
| Spindle speed stage | | Manual fourth gear, stepless speed change in gear |
| Main motor power | kw | 15 (22 Main motors are optional) |
| X-axis rapid traverse speed | m/min | 6 |
| Z-axis rapid traverse speed | m/min | 10 |
| X-axis stroke | mm | 675 |
| Z-axis stroke | mm | 850~5850 |
| Diameter of tailstock sleeve | mm | 140 |
| Tailstock sleeve stroke | mm | 250 |
| Taper of tailstock spindle taper | | Mt6# |
| Distance from bed | mm | 755 |
| From the ground | mm | 1500 |
| Machine weight | kg | 6.3T/6.8T/7.3/8.1T/8.6T |
| Width of guide rail | mm | 700 (Heavy body) |
| Machine tool profile (long x wide x High) | mm | 3700-7300x2550x2180 |
| Max capacity | kg | 2000 |
