Product Details
Product Description
Product Description
Product No: MX220

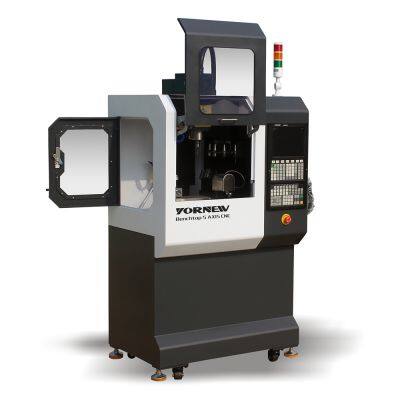

Product Name: 5 axis Mini CNC Mill
Features
(1).The brand new MX220 is a powerful mini CNC machine that is quick to set up, easy to operate, very stable, highly dynamic, and requires very little maintenance.
(2).High performance 5 axis milling CNC controlle.
(3).Selection of high -quality casting materials,more compact.
(4).High-precision linear guide.
(5).X, Y, Z, B, C FIVE axis micron level interpolation accuracy controlling;
(6).U disc/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(9).DXF+G code template function, converting DXF automatically to G code for processing.
(10).With the automatic aligning instrument.
(11).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(12).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(13). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(14).10 inch super large colorful LCD screen.
(15).Applicable industry: Mini CNC mill is perfect for schools, small job shops, or as a second machine.
Technical parameters
|
Positioning accuracy
| 0.02mm
|
Repeatability accuracy
| 0.01mm
|
X axis travel
| 220mm
|
Y axis travel
| 120mm
|
Z axis travel
| 200mm
|
A axis Rotate
| 360°(optiona axis)
|
Tool DIA. range
| 2-12mm
|
Control system
| KY1000MC CNC Controller
|
Instruction
| ISO G code
|
MPG hand wheel
| 5 axis
|
Spindle motor
| 2.2kw
|
Spindle speed
| 24000r/min
|
The max moving speed
| 2000mm/min
|
The max feeding speed
| 1000mm/min
|
Transmission
| ball screw
|
guide rail
| High-precision linear guide
|
Table size
| 460*130mm
|
Max. load
| 30kg
|
Table structure
| Full cast iron
|
Power
| 220VAC / 110VAC
|
Weight(NW/GW)
| 240kg/260kg
|
Overall dimension
| 930*750*920mm
|
Packing size
| 970*850*1100m
|
>>
