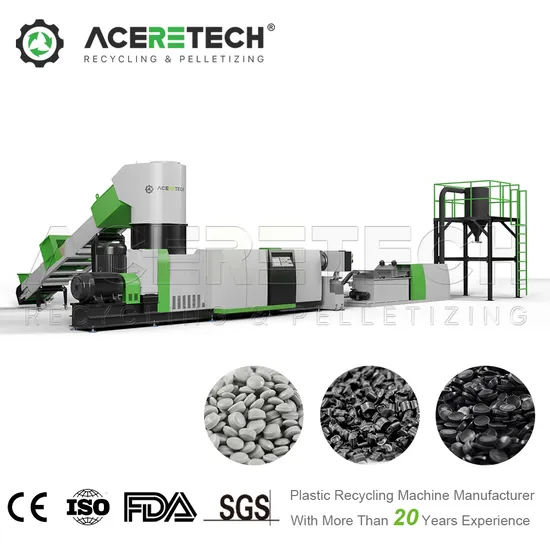

320-2100kg/H PP/PE/HDPE/LDPE Plastic Pelletizing Machine Waste Plastic Granulator Recycling Machine Pet with FDA Certificate

Product Description

PP PE HDPE LDPE Plastic Pelletizing Machine Waste Plastic Pellet Granulator Recycling Machine Product Description
Suitable for high impurities materials. Instead of two stage machine.
ACS-H Pro compacting and pelletizing system:The new recycling and granulation system is equipped with an optimized design single screw extruder and filtered in front of the vacuum degassing area. It is especially suitable for heavy printed or polluting plastics.
Application: PE,PP,PS,ABS
Product Parameters

SPECIFICATIONS
Machine Model	ACS-Pro
Target Recycled Material	HDPE,LDPE,PP,BOPP,CPP,OPP,PA,PC,PS,PU,ABS,PET
Final Product Shape	Particles
System composition	Belt Conveyor, Air Exhausting Device, Sliding Gate, Cutting Compactor with Inverter, Single Screw Extruder, Filtration first, Vacuum Degassing, Pelletizer, Water Cooling Device, Dehydration Section, Conveyor Fan, Product Silo.
Output Range	320kg/h-2100kg/h
Feeding Device	Belt Conveyor (Standard), Roll Hualing off device (Optional)
Compactor Volume	800L-2800L
Diameter of screw	100mm-180mm
Material of screw	Bimetal
L/D of screw	50/ 1
Heater of barrel	Ceramic heater or Far-infrared heater
Cooling of Barrel	Air cooling of fans through blowers
Vacuum deashing exhaust	Two Double-zone vacuum degassing system (Standard)
Pelletizing type	Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard	According to the Voltage of the Customer's Location
Optioanl device	Metal detector, Roll hualing off device, Masterbatch and additives feeder
Warranty	13 months from the date of bill of lading
Technical services	project design, factory construction, installation and recommendations, commissioning

Model	Compactor Volume (L)	Screw diameter(mm)	L/D ratio	Productivity(kg/h) for LDPE/LLDPE	Productivity(kg/h) for BOPET/PET
ACS-PRO1008	800	100	50	400-500	500-600
ACS-PRO1414	1400	140	50	900-1000	900-1150
ACS-PRO1616	1600	160	50	1300-1500	1200-1600
ACS-PRO1828	2800	180	50	1800-2000	1800-2100

Detailed Photos
Company Profile
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
* ACERETECH is original manufacturer.
* If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
* The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strict control by inspecting personnel.
* Each assembly is in charge by a master who has working experience for more than 15 years
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
* After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by the standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
* Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

---
