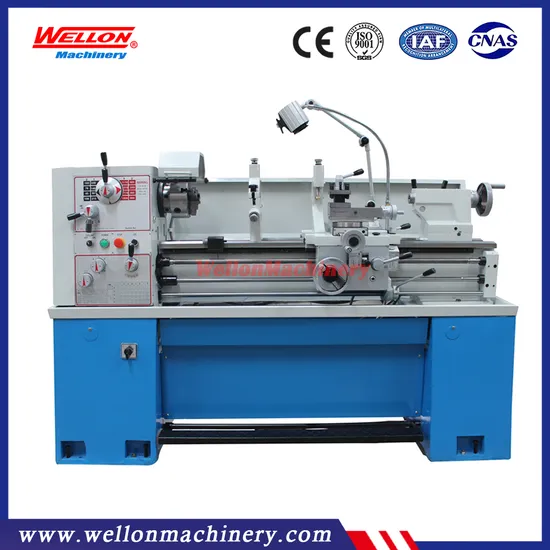

Conventional Lathe Machine C6233 C6236 Bench Lathe Machine

Product Description

Product Description

Conventional Lathe Machine C6233 C6236 Bench Lathe Machine

Detailed Photos
Product Parameters

Performence Features:
Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Easy operating gear box has various feed sand thread cutting function
Technical parameter:

Model	C6233	C6236
Swing over bed	330mm	356mm
Swing over cross slide	195mm	220mm
Swing in gap diameter	475mm	506mm
Valid length of gap	145mm	145mm
Admits between	1000mm	1000mm
Width of bed	206mm	206mm
Spindle nose	D1-4	D1-4
Spindle bore	38mm	38mm
Taper of spindle bore	MT No.5	MT No.5
Range of spindle speed	16 changes 45~1800r/min	16 changes 45~1800r/min
Compound rest travel	95mm	95mm
Cross slide travel	180mm	180mm
Max. section of tool	16x16mm	16x16mm
Lead screw thread	8T.P.I. or 4mm	8T.P.I. or 4mm
Longitudinal feeds range	0.043~0.653mm/rev	0.043~0.653mm/rev
Cross feeds range	0.027~0.413mm/rev	0.027~0.413mm/rev
Threads metric pitches	0.4~7mm	0.4~7mm
Threads inch pitches	4~56T.P.I.	4~56T.P.I.
Quill diameter	45mm	45mm
Quill travel	120mm	120mm
Quill taper	MT No.3	MT No.3
Main motor power (double speeds)	1.5/2.4kW(2/3HP)	1.5/2.4kW(2/3HP)
Coolant pump power	0.04kW	0.04kW
Overall dimension (LxWxH)	182x74x124cm	182x74x124cm
Packing size (LxWxH)	193x76x158cm	193x76x158cm
Net weight	700kg	730kg
Gross weight	820kg	860kg

Standard accessories:
3 jaw chuck
Dead centers
Sleeve
Stand base
Foot Brake
Coolant system
Lamp
Tool box and tools
Optional accessories:
Live center
Quick change tool post
Taper turning attachment
4 jaw chuck
Face plate
Steady rest
Follow rest
Digital read
Company information
Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
