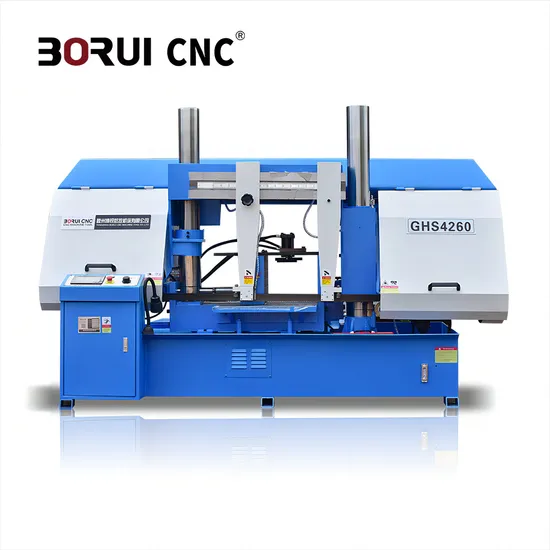

Ghs4260 Horizontal Automatic Metal Cutting CNC Band Saw Machine

Product Description

GHS4260 Horizontal Automatic Metal Cutting CNC Band Saw Machine
Product Description

Technical Parameters

Model	GHS4240	GHS4250	GHS4260
Cutting capacity (mm)	400 - 400 X 400	500 - 500 X 500	600 - 600 X 600
Blade speed(m/min)	27,45,69	27,45,69	27,45,69
Blade size(mm)	5000 X 41 X 1.3	5800 X 41 X 1.3	6640 X 67 X 1.6
Main motor Power(Kw)	5.5	5.5	5.5
Hydraulic motor power(kw)	0.75	1.5	1.5
Cooling pump(w)	90	90	125
Worktable Clamping type	Hydraulic automatically	Hydraulic automatically	Hydraulic automatically
Main driving struction	Turbine drive	Turbine drive	Turbine drive
Feeding type	Hydraulic automatically	Hydraulic automatically	Hydraulic automatically
Machine overall size (mm)	2380 X 2280 X 1850	2780 X 2250 X 2000	3150 X 2700 X 2100
Machine weight	2000KG	2400KG	3000KG

Details Display

Packing shaping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
