EPC17 High Frequency Transformer

Product Details

Product Description

Product Description

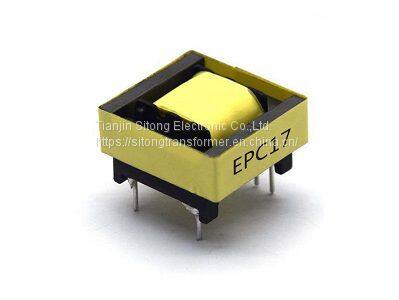

EPC17 High Frequency Transformer
Performance:
1. Working frequence: 10kHz-500KHz
2. Output power: 5 to 18 W
3. Working temperature: -40℃ to +125℃
4. Storage temperature: -25℃ to +85℃
5. Storage humidity: 30 to 95%

Type	Structure	Dimension（mm）			Pin Row（mm）		Row Pitch(mm)	OD Pin（mm）	Note
		A	B	C	Pin	E1/E2	F1/F2
EPC17-01	Horizontal	18.5	19.0	13.0	4+6	2.5/3.7	15.5	Φ0.6	TYPE 1
EPC17-02	Horizontal	19.5	18.5	10.5	4+5	3.5/5.0	20.8/23.0	SMD0.7	TYPE 2

Advantage:
1. Our materials resource from the suppliers in our UL lists (UL E364966). They have passed RoHS certificate. If you have pointed supplier, it is also available. We will inform in advance if there are any changes about the materials or suppliers.
2. Sitong Electronic has passed ISO9001:2015, our procedures according to the ISO requirements strictly. Our SOP is same as the customer’s requirements, and the batch goods are same as the delivered samples.
3. The goods will be inspected 2 times before delivery to ensure the best quality: All the products will through testing before varnish, and will be 100% tested before package. Twice testing including: turns, inductance, Hi-pot, leakage inductance, DCR, visual inspection, etc.

---
