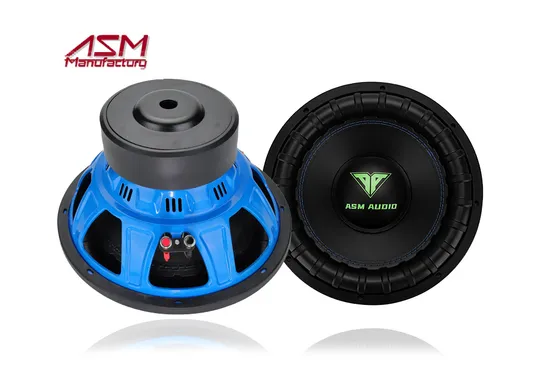

15inch 2000 Watts Max. Power Car Subwoofer

Product Description

SPECIFICATIONS
General Data	ELE 215.2V2.5D4	ELE 212.2V2.5D4	ELE 210.2V2D4
Structure	15" (380mm)	12" (304mm)	10(250mm)
Nominal Power Handing	1000 Watts	900 Watts	800 Watts
Maximum Power	2000 Watts	1800 Watts	1600 Watts
Sensitivity	91 dB	90 dB	89 dB
Frequency Response	35-3.6kHz	40-4.0KHz	42-1.2KHz
Electrical Data
Nominal Impedance	4+4 Ohm	4+4 Ohm	4+4 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter	63.5mm	63.5"BASV	50.5"BASV
Voice Coil welding Height	35mm	35mm	35mm
Number of Layers	4 Layer Copper	4 Layer Copper	4 Layer Copper
Magnetic Size	2pcs156x20mm,Y35	2pcs156x20mm,Y35	2pcs 140x20mm,Y35

The reason to work with Ningbo ASM manufacturing:
1) Focus on every detail
2) Full line PRO audio One-stop service
3) Well quality control and guarantee (Free spare parts)
4) Minimum OEM/ODM quantity request
5) Factory with Professional production technology
We are a professional manufacturer specializing in all kinds of audio speakers.Also we have our professional designers to meet any requirements.
Established in 2001, NINGBO ASM as become one of the largest companies special- ized in Subwoofer, Car speakers, Tweeter, Speaker systems, Boom box, professional sound systems, and other audio accessories.
As an audio equipment manufacturer with an area of 1500sq.m.,6 production lines(2 lines for car audio
systems, 2 lines for professional audio systems, 2 lines for relevant audio accessories), over 100 employees, and the certificate of ISO9001:2000 system, we still keeps specialized in R&D, sales, and OEM/ODM services.
Until 2016 Year,75-95% of our products export to overseas markets, such as the United states, Europe, Middle-east, and South America etc.
We have entry level, normal level and high-end level products.
More than 10 years was a glorious time for ASM, but ASM will certainly makes greater achievements in the future international market competition.
Ningbo ASM promises to offer his best services to his customers forever.

---
